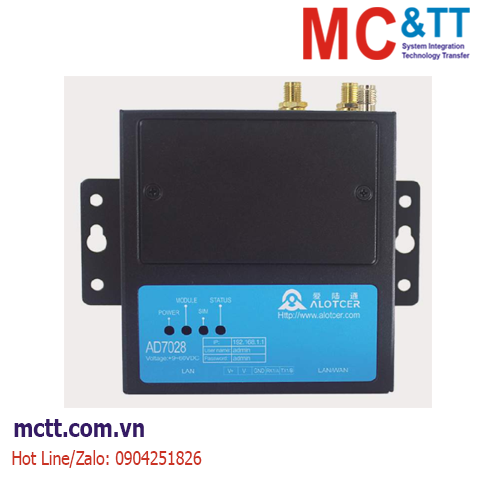

Router công nghiệp 4G VPN 2 cổng LAN Alotcer AD7028D(T)-AS

Thương hiệu: Alotcer | Tình trạng: Còn hàng
Liên hệ

Industrial Cellular 4G Router

Gọi +84 904251826 để được trợ giúp

Router công nghiệp 4G VPN 2 cổng LAN Alotcer AD7028D(T)-AS

The AD7028D(T) Industrial Cellular Mobile Router is an advanced cellular terminal device that has been developed to offer 5G/4G/3G/2G connectivity, a VPN client, and several other features. It is equipped with a powerful industrial 32-bit CPU and an embedded real-time operating system that ensures seamless performance. The device supports 1 RS232 (or 1 RS485), 1 10/100M LAN, and 1 10/100M LAN/WAN port, which enables transparent and convenient connection to a cellular network. Additionally, it supports a wide power range of 9-60V DC and has a compact and sturdy design that comes with necessary accessories for mount kit or DIN rail.

This Industrial Cellular Mobile Router has found extensive application in M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, among others.

Tính năng

  • 5G full network access, dual-mode SA/NSA, compatible with 4G/3G/2G.
  • 2 LAN ports (one can be used as WAN), one RS232/485 port.
  • Supports Electric power protocols 101/104 and Electric power terminal configuration interaction protocol.
  • Dual SIM Card (optional), GPS/Beidou, Electric power encryption/eSIM.
  • Features MQTT, Modbus TCP, OPC UA, Ntirp and DTU functions.
  • Supports IPSEC, L2TP, PPTP, openVPN GRE DMVPN etc.
  • Runs on Linux system and supports Python and C++ secondary development.
  • DC 9~60V input voltage range; communication current of 140mA when online and 120mA when offline (12V).
  • Operating temperature ranges from -40 to +75ºC; product size is 110x85x32mm.

Thông số kỹ thuật

Items Contents
Hardware System CPU Industrial 32bits CPU
FLASH 16MB (Extendable to 64MB)
SDRAM 128MB

Interface WAN 1 10/100Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
LAN 1 10/100Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
Serial 1 RS232(or RS485/RS422) port, 15KV ESD protection

Data bits: 5, 6 ,7, 8

Stop bits: 1, 1.5(optional), 2

Parity: none, even, odd, space(optional), mark(optional)

Baud rate: 2400~115200 bps

Antenna Cellular: Standard SMA female interface, 50 ohm
SIM/UIM Standard 3V/1.8V user card interface, 15KV ESD protection
Power Standard 3-PIN power jack, reverse-voltage and over voltage protection
Reset Press this key for 8 seconds to restore the router to its original factory default settings
Indicator “Signal strength”、”PWR”、”SIM”、”Online”

Network Wireless Network GSM/GPRS/EDGE: 850/900/1800/1900MHz

CDMA: 800/1900MHz

WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz

CDMA2000 1x/ EVDO Rev. A: 800/1900MHz

TD-SCDMA: 1880-1920/2010-2025MHz(A/F)

TDD-LTE: Band 38/39/40/41& Band 61/62 (Private Network)

FDD-LTE: Band 1/2/3/4/5/7/8/13/17/20/25

WAN Support PPP/PPPOE
LAN Support APR
Network Authentication Support CHAP/PAP Authentication
Network Access Support APN/VPDN
IP Applications Support Ping,Trace, DHCPServer, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet
IP Routing Support static routing

Power supply Standard Power DC 12V/1.5A
Power range DC 9~60V
Consumption

Physical Dimensions 110x85x32mm
Weight 390g

Environmental Limits Operating Temperature -35~+75ºC (-31~+167℉)
Storage Temperature -40~+85ºC (-40~+185℉)
Operating Humidity 95% ( unfreezing)

Thông tin đặt hàng

Model No Description WAN LAN Cellular SIM/UIM
AD7028D(T)-AS FDD-LTE Industrial Router

Accessories (anten + adapter)

1 1 1 1

Tài liệu

Datasheet
