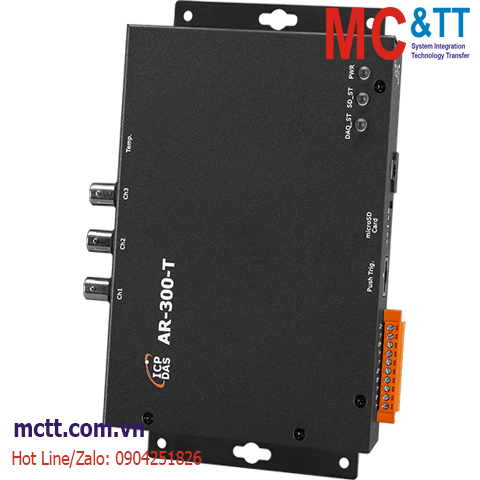

Bộ thu thập và xử lý dữ liệu (Data logger) 3 kênh đo gia tốc (dao động, rung chấn, Accelerometer) + 1 kênh nhiệt độ ICP DAS AR-300-T CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Accelerometer Data Logger Device with 3-ch IEPE Input, 1-ch Thermistor Input

THÔNG TIN SẢN PHẨM

Feature

3 simultaneous, 16-bit resolution ADC
Support 3-ch IEPE input, 1-ch Thermistor input, and built-in 3 mA excitation current.
Support sampling rate: 125kHz/100kHz/50kHz/20kHz/10kHz/5kHz
Max. Recording time: 30 m (5kHz)
Flexible trigger modes:
* Push button trigger
* Schedule trigger
* Analog threshold trigger
* Digital input trigger
* Software remote trigger
Supports 4 to 32 GB micro SDHC type flash

Introduction

AR-300-T is a high-performance dynamic signal acquisition module equipped with 3 channel IEPE input providing simultaneous-sampling at up to 125 kHz per channel and 1 channel Thermistor input. The module has a built-in 16- bit resolution ADC and 3 mA excitation current to measure IEPE sensors, and a micro SDHC flash card for data logging. It also supports flexible trigger modes, sampling rates, and recording time span, making it ideal for signal measurement in vibration applications

Application

Big data analysis
system monitoring
trend analysis
predictive maintenance

Specifications

LED Indicators
Status	1 x PWR 1 x DAQ 1 x SD

Temperature Measurement
Sensor Type	Thermistor
Channels	1
Range	0 °C ~ +80 °C
Accuracy	±2 °C
Installation	Wall-mount

Analog Input
Channels	3 (simultaneous sampling)
Type	IEPE
Range	Voltage: ±10 V Current: 3 mA
Resolution	16 bit
Sampling Rate	5, 10, 20, 50, 100, 125 (kHz)

Digital Input
Channels	2, Dry Contact: Source x 1 Wet Contact: Sink or Source x 1
ON Voltage Level	Dry: Close to GND Wet: +10 VDC to +50 VDC
OFF Voltage Level	Dry: Open Wet: +4 VDC max

Relay Output
Channels	Form A x 1
Type	Power Relay
Contact Rating	5A@250 VAC (47 ~ 63 Hz) 5A@30 VDC
Operate Time	10 ms
Release Time	5 ms
Electrical Endurance	100,000 times min
Mechanical Endurance	20,000,000 times min

Ethernet
Ports	1 x RJ-45, 10/100Base-T(X)

Power
Consumption	4.3 W

Mechanical
Dimensions (mm)	197 x 139 x 57 (W x L x H)
Installation	Wall Mount

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ 80 °C
Humidity	10 ~ 90% RH, non-condensing

Download

Datasheet

Documents

Ordering Information

AR-300-T CR

Accelerometer Data Logger Device, 3-ch IEPE Input, 1-ch Thermistor Input (RoHS)
