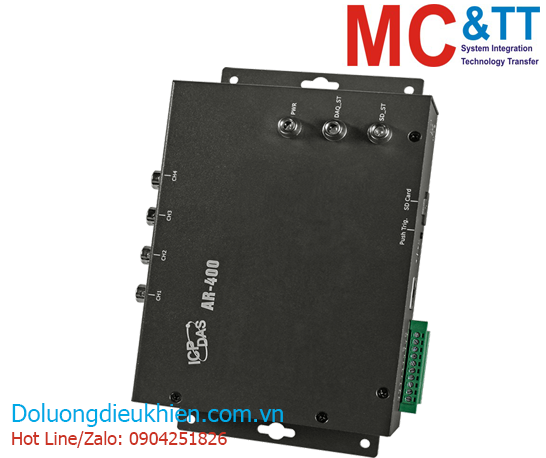

Bộ thu thập và xử lý dữ liệu (Data logger) 4 kênh đo gia tốc (dao động, rung chấn, Accelerometer) ICP DAS AR-400 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

4-channel Accelerometer Data Logger device (RoHS)

THÔNG TIN SẢN PHẨM

Features

2 or 4 simultaneous, 16-bit resolution ADC.
Support 2 or 4 IEPE input，and built-in 3 mA excitation current.
AR-200 support sample rate: 200kHz、100kHz、50kHz.
AR-400 support sample rate: 125kHz、100kHz、50kHz.
Max. Recording time：120 seconds.
Dynamic range：+/- 10V.
Flexible trigger modes: Push button trigger、Schedule trigger、analog threshold trigger、digital input trigger and utility remote trigger.
Supports 4 to 32 GB micro SDHC type flash.
Provide LED indicators.
4 kV Contact ESD protection for any terminal.
Wide range of power input (+10 to +30 VDC) and operating temperature (-25 to 75°C).

Introduction

The AR-200/AR-400 series is a range of high-performance dynamic signal acquisition modules that are designed specifically for vibration monitoring and analysis. The maximum simultaneous sampling rate for each channel on the AR-200 and AR-400 is up to 200k-Hz and 125k-Hz respectively. The AR-200/AR-400 modules include a built-in 3mA excitation current to power the Integrated Electronics Piezo-Electric (IEPE) accelerometers and a 16-bit A/D converter. The data acquired by the AR-200/AR-400 is saved on a Micro SD card that can be used for offline vibration analysis. ICP DAS also provides a utility that can be installed on the Host PC that can be easily configured for different triggering modes, as well as changing the sampling rate, and scheduling the sampling time for various applications using the development tools. Consequently, the AR-200/AR-400 modules are recommended as your best choice for vibration monitoring and measurement.

Specifications

Data Logger Capability
Recording Format	Binary
Storage Media	Micro SDHC type flash – support 4 to 32 GB

LED Indicators
Status	1 x PWR 1 x DAQ 1 x SD

Analog Input
Channels	4 (simultaneous sampling)
Type	3 mA
Range	+/- 10V
Resolution	16 bit
Sampling Rate	50, 100, 125
Trigger Mode	Push button trigger、Schedule trigger、Analog threshold trigger、 Digital input trigger、Utility Remote trigger

Digital Input
Channels	2, Dry Contact: Source x 1, Wet Contact: Sink or Source x 1
Wet Contact, ON Voltage Level	+10 VDC to +50 VDC
Wet Contact, OFF Voltage Level	+4 VDC max
Dry Contact, ON Voltage Level	Close to GND
Dry Contact, OFF Voltage Level	Open

Digital Output
Channels	1, Power Relay

Relay Output
Channels	Form A x 1

Ethernet
Ports	1 x RJ-45, 10/100Base-T(X)

Power
Consumption	4.3 W

Mechanical
Dimensions (mm)	197 x 139 x 57 (W x L x H)
Installation	Wall Mount

Environmental
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ 80 °C
Humidity	10 ~ 90% RH, non-condensing

Download

Data sheet

Documents

Ordering infromation

AR-400 CR

4-channel Accelerometer Data Logger device (RoHS)
