| Items |
Contents |
| Industrial Design |

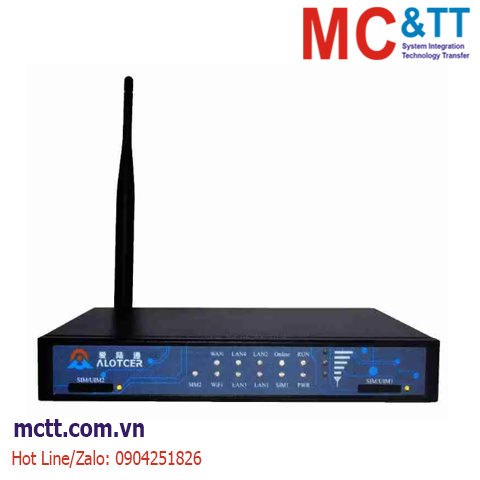

High-powered industrial cellular module |
| High-powered industrial 32bits CPU |
| Housing: iron, providing IP30 protection. |
| Power range: DC 5~35V |
| High Reliability |
Support hardware and software WDT |
| Support auto recovery mechanism to make router always online |
| Ethernet port: 1.5KV magnetic isolation protection |
| RS232/RS485 ports:15KV ESD protection |
| SIM/UIM port: 15KV ESD protection |
| Power port: reverse-voltage and over voltage protection |
| Antenna port: lightning protection(optional) |
| Standard and Convenience |
Support standard WAN port and PPPOE protocol that can connect to ADSL directly |
| Support standard RS232(or RS485/RS422), Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly |
| Support several work modes |
| Support intellectual mode, enter into communication state automatically when powered |
| Convenient configuration and maintenance interface （WEB or CLI） |
| High-performance and Security |
Support multiple WAN access methods, including static IP, DHCP, PPPOE, 2.5G/3G/4G/5G. |
| Support double link backup between 2.5G/3G/4G/5G and WAN (optional). |
| Support VPN client(PPTP, L2TP, IPSEC and GRE)(only for VPN version). |
| Support remote management, SYSLOG, SNMP, TELNET, SSH, HTTPS, etc. |
| Support local and remote firmware upgrade,import and export configure file. |
| Support NTP, RTC embedded. |
| Support multiple DDNS provider service. |
| Support MAC address cloning. |
| WIFI support 802.11b/g/n. support AP, client. |
| WIFI support WEP,WPA,WPA2 encryption. |
Support multiple online trigger ways, including SMS, ring and data.
Support link disconnection when timeout. |
| Support APN/VPDN. |
| Support multiple DHCP server and DHCP client, DHCP binding MAC address, DDNS, Firewall, NAT, DMZ host, QoS, traffic statistics, real-time display data transfer rate etc. |
| Support TCP/IP, UDP, FTP(optional), HTTP, etc. |
| Supports SPI firewall, VPN pass-through, access control, URL filtering,etc. |
| Support local log storage. |
| Support GPS/Beidou (optional). |
| Support two SIM/UIM card (optional). |
| Hardware System |
CPU |
Industrial 32 bits CPU |
| FLASH |
16MB (Extendable to 64MB) |
| SDRAM |
128MB |
| Interface |
Serial |
1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space(optional), mark(optional)
Baud rate: 2400~115200 bps |
| WAN |
1 10/100Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| LAN |
4 10/100Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| Antenna |
Cellular: Standard SMA female interface, 50 ohm
WIFI: Standard SMA male interface, 50 ohm
GPS(optional):Standard SMA female interface, 50 ohm |
| SIM/UIM |
Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power |
Standard 3-PIN power jack, reverse-voltage and over voltage protection |
| Reset |
Press this key for 8 seconds to restore the router to its original factory default settings |
| Indicator |
“Signal strength”、”PWR”、”RUN”、”SIM”、”Online”、”LAN1″、”LAN2″、”LAN3” 、”LAN4″、”WAN”、”WIFI”、”GPS”(optional)、”SIM2″(optional) |
| Network |
Wireless Network |
GSM/GPRS/EDGE: 850/900/1800/1900MHz
CDMA: 800/1900MHz
WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz
CDMA2000 1x/ EVDO Rev. A: 800/1900MHz
TD-SCDMA: 1880-1920/2010-2025MHz(A/F)
TDD-LTE: Band 38/39/40/41& Band 61/62 (Private Network)
FDD-LTE: Band 1/2/3/4/5/7/8/13/17/20/25 |
| WAN |
Support PPP/PPPOE |
| LAN |
Support APR |
| Network Authentication |
Support CHAP/PAP Authentication |
| Network Access |
Support APN/VPDN |
| IP Applications |
Support Ping、Trace、DHCPServer 、DHCP Relay、 DHCP Client、DNS relay、DDNS 、Telnet |
| IP Routing |
Support static routing |
| GPS (optional) |
Receiver Type |
50-channle
GPS L1（1575.42MHz）C/A code
SBAS: WAAS,EGNOS,MSAS,GAGAN |
| Max. update rate |
5 Hz |
| Accuracy |
Position: 2.5m CPE
SBAS: 2.0m CPE |
| Acquisition |
Cold starts: 32S
Warm starts: 32S
Aided starts: <1S
Hot starts: <3S |
| Sensitivity |
Tracking: -160dBm
Reacquisition: -160dBm
Cold starts: -146dBm |
| Timing accuracy |
RMS: 30ns
99%: <60ns
Granularity: 21ns |
| Time pulse |
Configurable, 0.25 to 1000Hz |
| WIFI (optional) |
Standard |
IEEE802.11b/g/n |
| Bandwidth |
IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max) |
| Security |
WEP, WPA, WPA2, etc. WPS (optional) |
| Power supply |
Standard Power |
DC 12V/1.5A |
| Power range |
DC 5~35V |
| Consumption |
<450mA (@12VDC) |
| Physical |
Dimensions |
186.8×120.2x28mm |
| Weight |
580g |
| Environmental Limits |
Operating Temperature |
-35~+75ºC (-31~+167℉) |
| Storage Temperature |
-40~+85ºC (-40~+185℉) |
| Operating Humidity |
95% ( unfreezing) |
