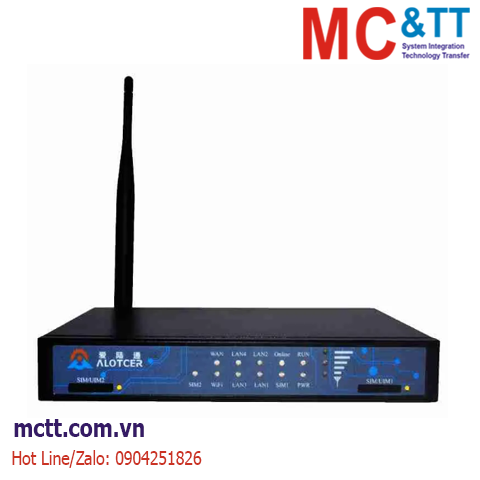

Router công nghiệp 4G VPN 4*LAN + 1*WAN + Wi-Fi + Dual SIM Alotcer AR7000-AS

Thương hiệu: Alotcer | Tình trạng: Còn hàng
Liên hệ

Industrial Cellular 4G Router

Gọi +84 904251826 để được trợ giúp

Router công nghiệp 4G VPN 4*LAN + 1*WAN + Wi-Fi + Dual SIM Alotcer AR7000-AS

AR7000 ROUTER is a kind of terminal device that developed based on 2G/3G/ 4G, WIFI, VPN technology. It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration.

It has been widely used on M2M fields, such as intelligent transportation, smart grid, postal services,industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.

Tính năng

  • 5G full network access, dual-mode SA/NSA, compatible with 4G/3G/2G.
  • 5 LAN ports (1 WAN and 4 LAN), one 1 RS232/485 port.
  • Optional Dual SIM Card, GPS/Beidou, Wifi
  • Features MQTT, Modbus TCP, OPC UA, Ntirp and DTU functions.
  • Supports IPSEC, L2TP, PPTP, openVPN GRE DMVPN etc.
  • Runs on Linux system and supports Python and C++ secondary development.
  • DC 9~35V input voltage range; communication current of 140mA when online and 120mA when offline (12V).
  • Operating temperature ranges from -35 to +75ºC; product size is 186x120x28mm.

Thông số kỹ thuật

Contents

Items Contents
Industrial Design High-powered industrial cellular module
High-powered industrial 32bits CPU
Housing: iron, providing IP30 protection.
Power range: DC 5~35V
High Reliability Support hardware and software WDT
Support auto recovery mechanism to make router always online
Ethernet port: 1.5KV magnetic isolation protection
RS232/RS485 ports:15KV ESD protection
SIM/UIM port: 15KV ESD protection
Power port: reverse-voltage and over voltage protection
Antenna port: lightning protection(optional)
Standard and Convenience Support standard WAN port and PPPOE protocol that can connect to ADSL directly
Support standard RS232(or RS485/RS422), Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly
Support several work modes
Support intellectual mode, enter into communication state automatically when powered
Convenient configuration and maintenance interface (WEB or CLI)
High-performance and Security Support multiple WAN access methods, including static IP, DHCP, PPPOE, 2.5G/3G/4G/5G.
Support double link backup between 2.5G/3G/4G/5G and WAN (optional).
Support VPN client(PPTP, L2TP, IPSEC and GRE)(only for VPN version).
Support remote management, SYSLOG, SNMP, TELNET, SSH, HTTPS, etc.
Support local and remote firmware upgrade,import and export configure file.
Support NTP, RTC embedded.
Support multiple DDNS provider service.
Support MAC address cloning.
WIFI support 802.11b/g/n. support AP, client.
WIFI support WEP,WPA,WPA2 encryption.
Support multiple online trigger ways, including SMS, ring and data.
Support link disconnection when timeout.
Support APN/VPDN.
Support multiple DHCP server and DHCP client, DHCP binding MAC address, DDNS, Firewall, NAT, DMZ host, QoS, traffic statistics, real-time display data transfer rate etc.
Support TCP/IP, UDP, FTP(optional), HTTP, etc.
Supports SPI firewall, VPN pass-through, access control, URL filtering,etc.
Support local log storage.
Support GPS/Beidou (optional).
Support two SIM/UIM card (optional).
Hardware System CPU Industrial 32 bits CPU
FLASH 16MB (Extendable to 64MB)
SDRAM 128MB
Interface Serial 1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space(optional), mark(optional)
Baud rate: 2400~115200 bps
WAN 1 10/100Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
LAN 4 10/100Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
Antenna Cellular: Standard SMA female interface, 50 ohm
WIFI: Standard SMA male interface, 50 ohm
GPS(optional):Standard SMA female interface, 50 ohm
SIM/UIM Standard 3V/1.8V user card interface, 15KV ESD protection
Power Standard 3-PIN power jack, reverse-voltage and over voltage protection
Reset Press this key for 8 seconds to restore the router to its original factory default settings
Indicator “Signal strength”、”PWR”、”RUN”、”SIM”、”Online”、”LAN1″、”LAN2″、”LAN3” 、”LAN4″、”WAN”、”WIFI”、”GPS”(optional)、”SIM2″(optional)
Network Wireless Network GSM/GPRS/EDGE: 850/900/1800/1900MHz
CDMA: 800/1900MHz
WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz
CDMA2000 1x/ EVDO Rev. A: 800/1900MHz
TD-SCDMA: 1880-1920/2010-2025MHz(A/F)
TDD-LTE: Band 38/39/40/41& Band 61/62 (Private Network)
FDD-LTE: Band 1/2/3/4/5/7/8/13/17/20/25
WAN Support PPP/PPPOE
LAN Support APR
Network Authentication Support CHAP/PAP Authentication
Network Access Support APN/VPDN
IP Applications Support Ping、Trace、DHCPServer 、DHCP Relay、 DHCP Client、DNS relay、DDNS 、Telnet
IP Routing Support static routing
GPS (optional) Receiver Type 50-channle
GPS L1(1575.42MHz)C/A code
SBAS: WAAS,EGNOS,MSAS,GAGAN
Max. update rate 5 Hz
Accuracy Position: 2.5m CPE
SBAS: 2.0m CPE
Acquisition Cold starts: 32S
Warm starts: 32S
Aided starts: <1S
Hot starts: <3S
Sensitivity Tracking: -160dBm
Reacquisition: -160dBm
Cold starts: -146dBm
Timing accuracy RMS: 30ns
99%: <60ns
Granularity: 21ns
Time pulse Configurable, 0.25 to 1000Hz
WIFI (optional) Standard IEEE802.11b/g/n
Bandwidth IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max)
Security WEP, WPA, WPA2, etc. WPS (optional)
Power supply Standard Power DC 12V/1.5A
Power range DC 5~35V
Consumption <450mA (@12VDC)
Physical Dimensions 186.8×120.2x28mm
Weight 580g
Environmental Limits Operating Temperature -35~+75ºC (-31~+167℉)
Storage Temperature -40~+85ºC (-40~+185℉)
Operating Humidity 95% ( unfreezing)

Thông tin đặt hàng

Model No Description WAN LAN Cellular SIM/UIM
AR7000-AS LTE Industrial Router

Accessories (anten + adapter)

1 4 2 2

Tài liệu

Datasheet
