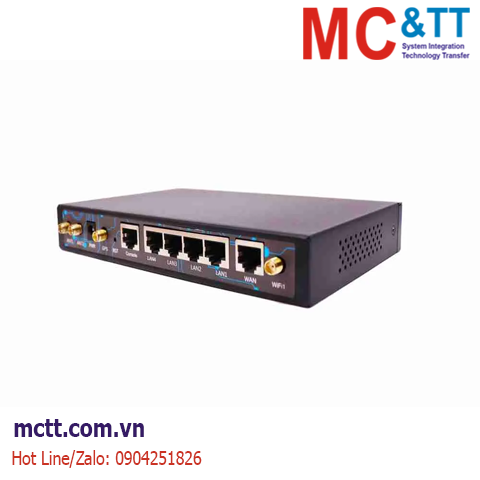

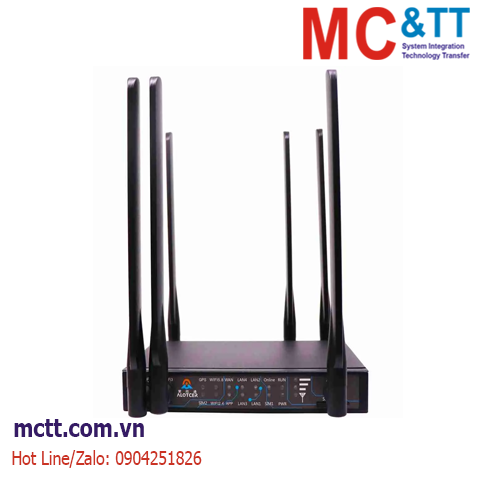

Router công nghiệp 4G/5G VPN, 4*LAN + 1*WAN + Wi-Fi + Dual SIM + GPS Alotcer AR7091

Thương hiệu: Alotcer | Tình trạng: Còn hàng
Liên hệ

Industrial IoT Edge Gateway

Gọi +84 904251826 để được trợ giúp

Router công nghiệp 4G/5G VPN, 4*LAN + 1*WAN + Wi-Fi + Dual SIM + GPS Alotcer AR7091

AR7091 Gateway is a kind of terminal device that developed based on 5G/4G/3G/2G, WIFI, VPN technology. It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports 1 Gigabit Ethernet WAN and 4 Gigabit Ethernet LAN, 1 RS232 (or RS485), and 2.4G/5.8G WIFI port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration.

It has been widely used on M2M fields, such as intelligent transportation, smart grid, postal services, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.

Tính năng

  • High-powered industrial 32 bits CPU
  • High-powered industrial cellular module
  • Wide Operating Temperature(-35~+75ºC)
  • Power range: DC 9~35V
  • Support hardware and software WDT
  • Support standard RS232(or RS485/RS422), Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly
  • Support auto recovery mechanism, including online detect, auto redial when offline to make it always online
  • Power port: reverse-voltage and over voltage protection
  • Convenient configuration and maintenance interface
  • Support TCP server
  • WIFI support 802.11b/g/n/ac. support AP, client.
  • Support multi data centers and it can support 5 data centers at the same time
  • Support local log storage.
  • Support Python secondary development platform (Python3)
  • Support dual SIM/UIM card (optional)
  • Support dual 4G/5G module (optional)
  • Support GPS/Beidou dual-mode positioning (optional)

Thông số kỹ thuật

Items Contents
Industrial Design High-powered industrial cellular module
High-powered industrial 32bits CPU
Housing: iron, providing IP30 protection.
Power range: DC 9~35V
High Reliability Support hardware and software WDT
Support auto recovery mechanism to make router always online
Ethernet port: 1.5KV magnetic isolation protection
RS232/RS485 ports:15KV ESD protection
SIM/UIM port: 15KV ESD protection
Power port: reverse-voltage and over voltage protection
Antenna port: lightning protection(optional)
Standard and Convenience Support standard WAN port and PPPOE protocol that can connect to ADSL directly
Support standard RS232(or RS485/RS422), Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly
Support several work modes
Support intellectual mode, enter into communication state automatically when powered
Convenient configuration and maintenance interface (WEB or CLI)
Supports Fixed ear and 35mm Din-rail mounting
High-performance and Security Support multiple WAN access methods, including static IP, DHCP, PPPOE, 2.5G/3G/4G/5G.
Support double link backup between 2.5G/3G/4G/5G and WAN (optional).
Support VPN client(PPTP, L2TP, IPSEC and GRE)(only for VPN version).
Support remote management, SYSLOG, SNMP, TELNET, SSH, HTTPS, etc.
Support local and remote firmware upgrade,import and export configure file.
Support NTP, RTC embedded.
Support multiple DDNS provider service.
Support MAC address cloning.
WIFI support 802.11b/g/n. support AP, client. (optional)
WIFI support WEP,WPA,WPA2 encryption. (optional)
Support multiple online trigger ways, including SMS, ring and data.
Support link disconnection when timeout.
Support APN/VPDN.
Support VRRP link backup
Support multiple DHCP server and DHCP client, DHCP binding MAC address, DDNS, Firewall, NAT, DMZ host, QoS, traffic statistics, real-time display data transfer rate etc.
Support IoT protocol MQTT client and server (support CA)
Support industrial control OPCUA protocol and MODBUS protocol conversion
Support Python secondary development platform (Python3)
Support TCP/IP, UDP, FTP(optional), HTTP, etc.
Supports SPI firewall, VPN pass-through, access control, URL filtering,etc.
Support local log storage.
Support GPS (optional).
Support two SIM/UIM card(optional).
Support dual 4G/5G module (optional)
Hardware System CPU Industrial 32 bits CPU
FLASH 16MB (Extendable to 64MB)
SDRAM 512MB
Interface Serial 1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space(optional), mark(optional)
Baud rate: 2400~115200 bps
WAN 1 Gigabit WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
LAN 4 Gigabit Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
Antenna Cellular: Standard SMA female interface, 50 ohm
WIFI: Standard SMA male interface, 50 ohm
GPS(optional):Standard SMA female interface, 50 ohm
SIM/UIM Standard 3V/1.8V user card interface, 15KV ESD protection
Power Standard 3-PIN power jack, reverse-voltage and over voltage protection
Reset Press this key for 8 seconds to restore the router to its original factory default settings
Indicator “Signal strength”、”PWR”、”RUN”、”SIM”、”Online”、”LAN1″、”LAN2″、”LAN3” 、”LAN4″、”WAN”、”APP”、”WIFI2.4″、”WIFI5.8″、”GPS”(optional)、”SIM2″(optional)
Network Wireless Network 5G NR SA/NSA:n1/2/3/5/7/8/12/20/28/41/66/71/ 77/78/79
TDD-LTE:B38/39/40/41
FDD-LTE:B1/2/3/4/5/7/8/13/17/20/25/28
WCDMA:850/900/1900/2100MHz
TD-SCDMA:1880-1920/2010-2025MHz(A/F)
CDMA2000 1x/ EVDO Rev. A:800/1900MHz
GSM/GPRS/EDGE:850/900/1800/1900MHz
CDMA:800/1900MHz
WAN Support PPP/PPPOE
LAN Support APR
Network Authentication Support CHAP/PAP Authentication
Network Access Support APN/VPDN
IP Applications Support Ping、Trace、DHCPServer 、DHCP Relay、 DHCP Client、DNS relay、DDNS 、Telnet
IP Routing Support static routing
GPS (optional) Receiver Type 50-channle
GPS L1(1575.42MHz) C/A code
SBAS: WAAS,EGNOS,MSAS,GAGAN
Max. update rate 5 Hz
Accuracy Position: 2.5m CPE
SBAS: 2.0m CPE
Acquisition Cold starts: 32S
Warm starts: 32S
Aided starts: <1S
Hot starts: <3S
Sensitivity Tracking: -160dBm
Reacquisition: -160dBm
Cold starts: -146dBm
Timing accuracy RMS: 30ns
99%: <60ns
Granularity: 21ns
Time pulse Configurable, 0.25 to 1000Hz
WIFI (optional) Standard IEEE802.11b/g/n,2.4G support AP and Station mode
IEEE802.11ac,5.8G support AP and Station mode
Bandwidth IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 300Mbps (max)
IEEE802.11ac: 866Mbps (max)
Security WEP, WPA, WPA2, etc. WPS (optional)
Power supply Power range DC 9~35V (12VDC recommended)
Consumption1 390mA (@12VDC) (One Module) ①
Consumption2 580mA @12VDC (Dual Module)
Max current <1200mA @12VDC(Dual Module 5G)
Physical Dimensions 186.8×120.2x28mm
Weight 720g
Environmental Limits Operating Temperature -35~+75ºC (-31~+167℉)
Storage Temperature -40~+85ºC (-40~+185℉)
Operating Humidity 95% ( unfreezing)

Thông tin đặt hàng

Product Type Model Product Name

Standard

AR7091-R

5G GATEWAY/CPE

AR7091-A 4G GATEWAY/CPE
AR7091-B

TDD/FDD-LTE GATEWAY/CPE

AR7091-F

FDD-LTE GATEWAY/CPE

Dual SIM

AR7091-RS

Dual SIM 5G GATEWAY/CPE

AR7091-AS

Dual SIM 4G GATEWAY/CPE

AR7091-BS

Dual SIM TDD/FDD-LTE GATEWAY/CPE

AR7091-FS

Dual SIM FDD-LTE GATEWAY/CPE

GPS

AR7091-RP

GPS+5G GATEWAY/CPE

AR7091-AP

GPS+4G GATEWAY/CPE

AR7091-BP

GPS+TDD/FDD-LTE GATEWAY/CPE

AR7091-FP

GPS+FDD-LTE GATEWAY/CPE

GPS+Dual SIM

AR7091-RSP

GPS+ Dual SIM 5G GATEWAY/CPE

AR7091-ASP

GPS+ Dual SIM 4G GATEWAY/CPE

AR7091-BSP

GPS+ Dual SIM TDD/FDD-LTE GATEWAY/CPE

AR7091-FSP

GPS+ Dual SIM FDD-LTE GATEWAY/CPE

Dual Module AR7091S-RR Dual Module 5G GATEWAY/CPE
AR7091S-AA Dual Module 4G GATEWAY/CPE
AR7091S-BB Dual Module TDD/FDD-LTE GATEWAY/CPE
AR7091S-FF Dual Module FDD-LTE GATEWAY/CPE
AR7091S-RA Dual Module 5G&4G GATEWAY/CPE
GPS + Dual Module AR7091S-RRP GPS+ Dual Module 5G GATEWAY/CPE
AR7091S-AAP GPS+ Dual Module 4G GATEWAY/CPE
AR7091S-BBP GPS+ Dual Module TDD/FDD-LTE GATEWAY/CPE
AR7091S-FFP GPS+ Dual Module FDD-LTE GATEWAY/CPE
AR7091S-RAP GPS+ Dual Module 5G&4G GATEWAY/CPE
Commercial AR7091-N

GATEWAY/CPE
