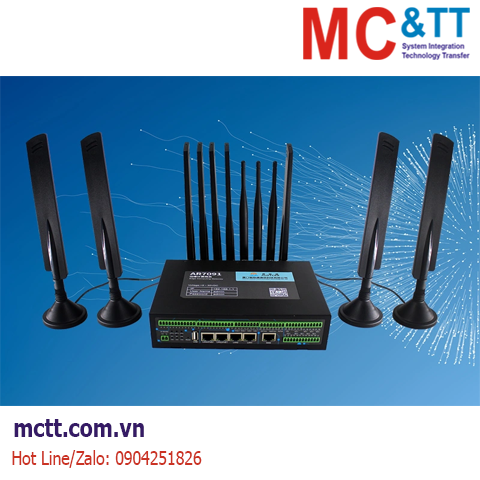

IoT Gateway công nghiệp 4G/5G VPN, 4*LAN + 1*WAN + Wi-Fi + Dual SIM + GPS Alotcer AR7091G

IoT Gateway công nghiệp 4G/5G VPN, 4*LAN + 1*WAN + Wi-Fi + Dual SIM + GPS Alotcer AR7091G

Tính năng

• Dual-mode 5G

Dual 5G module, dual SIM card, 1 Gigabit WAN port/optical port, and 4 Gigabit LAN ports.

• Multiple interfaces

1 rainfall interface, 2 AI interfaces, 2 DI interfaces, 1 CAN interface, and 2 relay-controlled power supply interfaces.

• Dual standby SIM cards

2 RS232 interfaces, 7 RS485 interfaces, dual-band high-speed WIFI of 2.4/5Ghz frequency band, optional WIFI6.

• Rich optional accessories

Optional GPS/Beidou/pulse signal input/output, base station/B code timing synchronization function, power encryption/public professional/eSIM.

• Expandable I/O board

Special features: modular software and hardware architecture, supports custom I/O interface board customization.

• Hydrological regulations in various provinces

Complies with hydrological resources and environmental protection regulations such as those for the different provinces in China, MQTT protocol authentication, etc.

• Full-featured

Modbus RTU, Modbus TCP, OPC UA, Ntirp, DTU functions are supported.

• VPN networking

IPSEC, L2TP, PPTP, OpenVPN, GRE, DMVPN, etc.

• Secondary development

High-performance dual-core CPU, Linux system, supports Python, and C++ secondary development.

• Hardware encryption

Supports mainstream PLC protocols, and optional protocols like IEC101/104, DNP3.0/DLT645, etc.

• Wide voltage range current consumption

DC9~35V, input power consumption is less than or equal to 5.9 /5.7W without communication, and less than or equal to 6.5 /7.2W with communication (4G/5G).

• High-temperature resistance

Working temperature -40 ~ +75ºC, the product size is 209x150x55 mm.

Thông số kỹ thuật

Thông tin đặt hàng

Tài liệu

Datasheet
