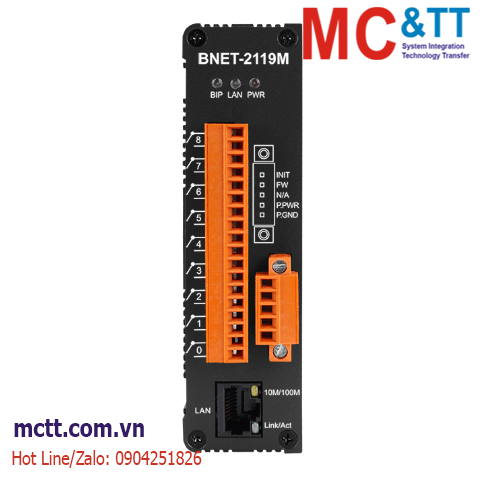

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule BACnet/IP 9 kênh đầu ra Relay ICP DAS BNET-2119M CR
Features
Introduction
The BNET-2119M is a BACnet/IP IO module, featuring 9 Relay output channels. The module contains multiple BACnet objects, including Device, BO, and supports various BIBBS (such as DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM, DS-COV-B, etc.). The module has a built-in web server, allowing users to easily and securely configure the module remotely via a web interface.
Applications
Specifications
| CPU Module | |
|---|---|
| Watchdog Timer | Yes |
| System | |
|---|---|
| Security | ID and Password |
| LED Indicators | |
|---|---|
| Status | Power, Ethernet and BIP status |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100 Base-TX |
| BACnet/IP | |
|---|---|
| Protocol | BACnet/IP Server |
| Objects | 1 Device, 9 BO |
| BIBBs | DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM-B, DS-COV-B, DM-DDB-B, DM-DOB-B, DM-DCC-B, DM-TS-B, DM-UTC-B, DM-RD-B |
| Power | |
|---|---|
| Input Range | +10VDC to +30VDC |
| Consumption | 3.6W (0.15A @24VDC) |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 33 x 120 x 106 (W x L x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| BNET-2119M CR | BACnet/IP I/O module with 9-ch Relay output (RoHS) |
