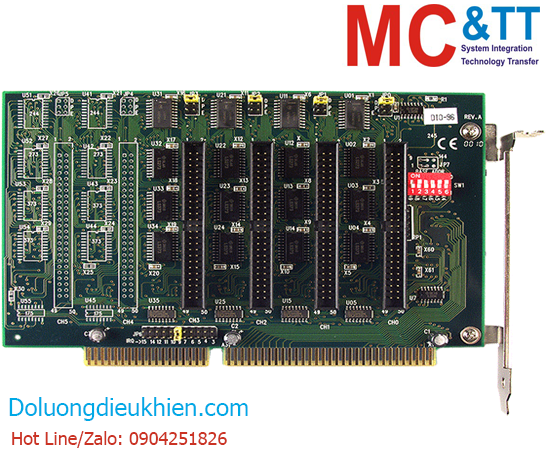

Card ISA 96 kênh vào/ra số DIO ICP DAS DIO-96 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

ISA Bus, 96-ch Digital I/O Board

THÔNG TIN SẢN PHẨM

Features

Double side SMT , short card, power saving
DIO-144 : 144 digital I/O lines
DIO-96 : 96 digital I/O lines
Emulate 8255 mode 0 (Basic Input/Output mode)
Buffer output for higher driving capability than 8255
Register compatible to 722 series
Programmable interrupt handling
DIO-144 : Six 50-pin Header
DIO-96 : Four 50-pin Header
Output status readback

Introduction

The DIO-144/96 provides 144/96 TTL digital I/O lines. The DIO-144/96 emulates 8255 mode 0 and has an increased output current of 15 mA (source) and 64 mA (sink) , allowing it to control LED, relay, etc. The DIO-144/96 consists of eighteen 8 bit bi-directional ports and 2 input lines for interrupt enable and interrupt. The 8 bit ports are named port A(PA),port B(PB) and port C(PC). The port C can be split into two four bit. All port are configured as inputs upon power-up or reset. The DIO-144/96 uses 4 consecutive I/O locations in I/O addressing space. The base address is selectable from 200 to 3FF hex. The interrupt signal can be connected to any of the interrupt levels 2 through 15.

Specification

Hardware
Connector	50-pin box header x 4

Digital Input
Channels	96 (Bi-Direction)
Type	5 V/TTL
TTL Input, ON Voltage Level	2.0 V Min.
TTL Input, OFF Voltage Level	0.8 V Max.
Response Speed	1.0 MHz (Typical)
Trigger Mode	Static Update

Digital Output
Channels	96 (Bi-Direction)
Type	5 V/TTL
Operation Mode	Static Update
Voltage	Logic 0: 0.1 V Max. Logic 1: 2.4 V Min.
Max. Load Current	Sink: 6 mA @ 0.33 V Source: 6 mA @ 4.77 V
Response Speed	1 MHz (Typical)

PC Bus
Type	ISA
Data Bus	8-bit

Power
Consumption	800 mA @ +5 V

Mechanical
Dimensions (mm)	20 x 182 x 22 (W x L x D)

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Data sheet

D ocuments

Odering information

DIO-96 CR

ISA Bus, 96-ch Digital I/O Board (RoHS)
