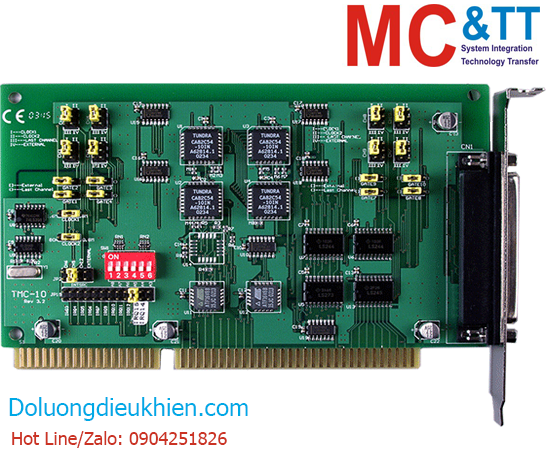

Miễn phí vận chuyển với đơn hàng từ 10.000.000đCard ISA 16 kênh vào/ra số DIO + 12 kênh đầu vào Timer/Counter/Frequency ICP DAS TMC-10 CR
Features
Introduction
The TMC-10 is a general purpose timer/ counter and digital I/O Board for PC. It provides eight 16-bit Timer/Counter channel, two cascaded 32-bit Timer/Counter channels , 8-bit digital output and two internal clock source (8 M/1.6 M;0.8 M/80 k) by jumper selectable. Four 8254 chips provides a variety of powerful timer/counter function modes to match your industrial and laboratory applications.
Specification
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 |
| Digital Input | |
|---|---|
| Channels | 16 |
| Type | 5 V/TTL |
| TTL Input, ON Voltage Level | 2.0 V Min. |
| TTL Input, OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
|---|---|
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Max. Load Current | Sink: 24 mA @ 0.8 V Source: 15 mA @ 2.0 V |
| Response Speed | 1.0 MHz (Typical) |
| Timer/Counter/Frequency | |
|---|---|
| Channels | 12 |
| Type | 5 V/TTL(82C54 compatible timer) |
| Resolution | 16-bit |
| Input Frequency | 10 MHz max. |
| Reference Clock | Internal: 8 MHz |
| PC Bus | |
|---|---|
| Type | ISA |
| Data Bus | 16-bit |
| Power | |
|---|---|
| Consumption | 500 mA @ +5 V |
| Mechanical | |
|---|---|
| Dimensions (mm) | 105 x 162 x 22 (W x L x D) |
| Environmental | |
|---|---|
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Download
Odering information
| TMC-10 CR | ISA Bus, 10-ch Timer/Counter Board (RoHS) Includes one CA-4002 D-Sub connector |
