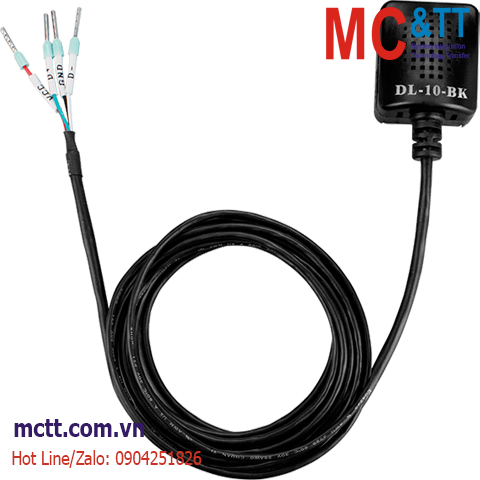

DL-10-BK CR: Cảm biến đo nhiệt độ + độ ẩm RS-485 Modbus RTU

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

DL-10-BK CR Remote Temperature and Humidity Sensing Module Using Modbus RTU Protocol (Black Cover) (RoHS)

THÔNG TIN SẢN PHẨM

Features

Measurement Ranges: -20 ~ +60°C and 0 ~ 100% RH
Accuracy:
- ±0.4°C; ±3.0% RH for non-P verison
- ±0.3°C; ±1.8% RH for P version
10 ~ 30 VDC Power Input
IP66 Waterproof
RS-485 Communication interface
Modbus RTU Protocol
Windows Software Included

Introduction

The DL-10 is a RS-485 remote temperature and humidity module that gives you real time temperature and humidity information at the same time. It contains an RS-485 communication interface and an sensor for measuring temperature and humidity. The DL-10 module supports Modbus RTU communication protocol for getting measured temperature and humidity values. DCON Utility Pro provides easy and convenient interfaces for users to configure the module. Based on an amazing tiny form-factor, the DL-10 achieves the maximum space savings that allows it to be easily installed anywhere.

Specifications

Temperature Measurement
Range	-20 ~ +60°C (-4 ~ +140°F)
Resolution	0.1°C
Accuracy	Typical: ±0.4°C
Precision	±0.1°C

Humidity Measurement
Accuracy	Typical: ±3% RH @ 20 ~ 80% RH
Precision	±0.1°C
Range	10 ~ 95% RH
Resolution	0.1°C

COM Ports
Ports	1 x RS-485, Non-isolated
Baud Rate	1200 ~ 115200 bps
Data Format	(N, 8, 1)
Protocol	Modbus RTU
Max. Connection	32

Power
Input Range	+10 ~ +30 VDC
Consumption	0.05 W

Mechanical
Dimensions (mm)	25 x 20.2 x 30 (W x L x H)
Installation	Magnetic mount; Wall mount

Environmental
Operating Temperature	-20 ~ +60°C
Storage Temperature	-30 ~ +80°C
Humidity	10 ~ 95% RH, Non-condensing

Download

Data sheet

Documents

Ordering infromation

DL-10-BK CR

Remote Temperature and Humidity Sensing Module Using Modbus RTU Protocol (Black Cover) (RoHS)
