DL-100T485 CR IP66 Remote Temperature and Humidity Data Logger with LCD Display, Using DCON Protocol (Black Cover) (RoHS)

THÔNG TIN SẢN PHẨM

Features

Measurement Ranges: -20 ~ +60°C and 0 ~ 100% RH
Accuracy:
- ±0.4°C; ±3.0% RH for non-P verison
- ±0.3°C; ±1.8% RH for P version
LCD Display Shows Temperature, Humidity and Module ID
10 ~ 30 VDC Power Input
IP66 Waterproof
Data Logger Can Store Up to 4088 Temperature and Humidity Records
RS-485 Communication interface
DCON Protocol
Windows Software Included

Introduction

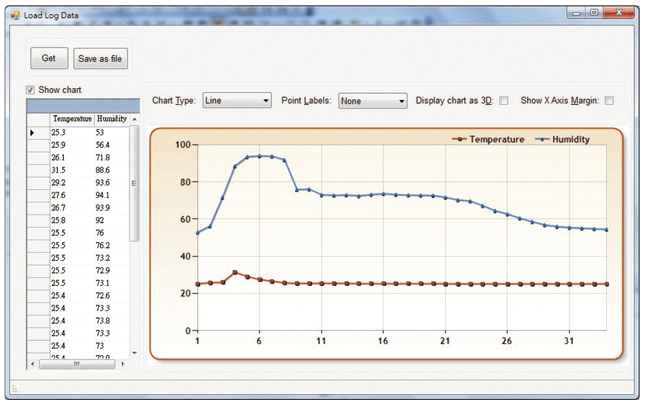

The DL-100T485 is a temperature and humidity data logger module. It contains an RS-485 communication interface and an LCD display to show a variety of temperature, humidity and module ID data. The data storage memory can store up to 4088 temperature and humidity records. The Data Logger Utility is included to allow installation, configuration, retrieval and display of data in a powerful chart format that can be exported to Excel.

Specifications

Data Logger
Mode	Overwrite or stop logging when storage space is full
Time Interval	10 seconds to 1 day
Overwrite Limitation	1,000,000 cycles
Max. Records	4088 temperature and humidity records

Display
LCD Information Displayed	Temperature (°C and °F), Humidity (RH), Module ID

Temperature Measurement
Range	-20 ~ +60°C (-4 ~ +140°F)
Resolution	0.1°C
Accuracy	Typical: ±0.4°C
Precision	±0.1°C

Humidity Measurement
Accuracy	Typical: ±3% RH @ 20 ~ 80% RH
Precision	±0.1°C
Range	0 ~ 100% RH
Resolution	0.1°C

COM Ports
Ports	1 x RS-485, Non-isolated
Baud Rate	1200 ~ 115200 bps
Data Format	(N, 8, 1)
Protocol	DCON
Max. Connection	32

Power
Input Range	+10 ~ +30 VDC
Consumption	0.15 W

Mechanical
Dimensions (mm)	82 x 126 x 55 (W x L x H)
Installation	DIN-Rail; Wall mount
Ingress Protection Rating	IP66

Environmental
Operating Temperature	-20 ~ +60°C
Storage Temperature	-30 ~ +80°C
Humidity	5 ~ 95% RH, Non-condensing

Download

Data sheet

Documents

Ordering infromation

DL-100T485 CR

IP66 Remote Temperature and Humidity Data Logger with LCD Display, Using DCON Protocol (Black Cover) (RoHS)
