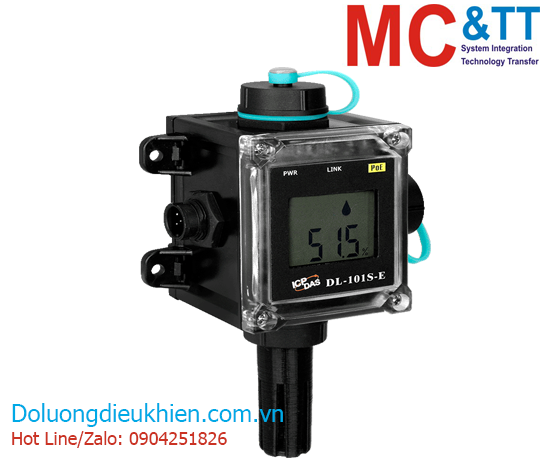

DL-101S-E CR: Bộ đo hiển thị và lưu trữ Data Logger nhiệt độ + độ ẩm Ethernet Modbus TCP + MQTT
Features
- Measurement Range: -20 to +60°C and 0 to 100% RH
- LCD Display Shows Temperature, Relative Humidity, Date and Time
- Able to store up to 600,000 records with date and time stamps
- Free Software Utility, iOS APP and Android App Included
- Supports the Modbus TCP and MQTT Protocols
- Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input (DL-101S-E and DL-101S-E-W Only)
- PhotoMOS Relay Output for Alarm Devices or IAQ Device Control (DL-101S-E and DL-101S-E-W Only)
- Supports Web Confi guration and Firmware Update via Ethernet
- IP66 Protection Approval
- DIN-Rail or Wall Mounted
Introduction
The DL-100S-E/DL-101S-E series of Data Logger devices can be used to record temperature, humidity and dew point information, including the date and time stamps for each record, with up to 600,000 downloadable records able to be stored. Real-time data can be accessed from the DL-100S-E/DL-101S-E Data Logger from anywhere and at any time using the free Windows software, the iOS App, or the Android App, as long as it is connected to the same local network as the Data Logger. The DL-100S-E/DL-101S-E Data Logger supports popular industrial protocols such as Modbus TCP, as well as the emerging machine-to-machine (M2M)/IoT (Internet of Things) connectivity protocol – MQTT. The DL-100S-E/DL-101S-E Data Logger can be connected using a range of communication interfaces including Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, ensuring easy maintenance in a distributed control system.
Multi-platform Remote Access Software
Real-time data from the DL-300 Data Logger can be accessed from anywhere and at any time using the DL300 Utility, the iOS or Android App, or via a regular web browser, as long as it is connected to the same local network as the Data Logger.
Supports the MQTT Protocol for IoT
Free and Powerful DL300 Utility
The DL300 Utility can be used to configure the modules, monitor real-time data, or group DL-300 modules so that the status of distribution groups can be viewed and managed. The utility also allows the log data to be downloaded and exported to a .CSV file that can then be imported into any industry-standard software or spread sheet for analysis.
Specifications
| CPU Module |
| Real Time Clock |
Yes |
| Watchdog Timer |
Yes, Module, Communication (Programmable)
System |
| Display |
| LCD Information Displayed |
Temperature (°C and °F), Humidity (RH), Relative Humidity, Date and Time |
| System |
| Security |
Password and IP Filter |
| LED Indicators |
| Status |
PWR: System indicator (Green)
Link: Link/Act indicator (Green)
PoE: PoE indicator (Red) |
| Temperature Measurement |
| Range |
-20 ~ +60°C (-31 to +176˚F) |
| Resolution |
0.1°C |
| Accuracy |
±0.4°C |
| Humidity Measurement |
| Accuracy |
±3% RH @ 20 to 80% RH |
| Range |
0 ~ 100% RH |
| Resolution |
0.1% RH |
| System |
| Data Logger |
Yes, 600,000 Records |
| PhotoMOS Relay Output |
Form Ax2, SPST 100 VDC @ 1 A
Electrical |
| COM Ports |
| Protocol |
Modbus TCP, MQTT |
| Ethernet |
| Ports |
10/100 Base-TX with Auto MDI/MDI-X |
| PoE |
Yes, (IEEE 802.3af, Class 1) |
| Power |
| Consumption |
PoE: 0.7 W Max.
Non-PoE: 0.6 W Max. |
| Powered from PoE |
IEEE 802.3af, Class 1 (48 V) |
| Powered from Terminal Block |
+12 ~ +48 VDC |
| Mechanical |
| Dimensions (mm) |
100 x 157 x 56 (W x L x H) |
| Installation |
DIN-Rail; Wall mounted |
| Ingress Protection Rating |
IP66 |
| Environmental |
| Operating Temperature |
-20 ~ +60°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
5 ~ 95% RH, Non-condensing |
Download
Data sheet
Documents
Ordering infromation
| DL-101S-E CR |
IP66 Remote Temperature/Humidity/Dew Point Data Logger with Safety Alarm, Using Modbus TCP and MQTT Protocols (Black Cover) (RoHS) |
