Bo mạch kết nối 8 kênh đầu vào tương tự HART ICP DAS DN-AIH-08 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Termination board for HART analog input with EMS protection and over-current protected and isolated passive loop power

THÔNG TIN SẢN PHẨM

Features

Introduction

The DN-AIH-08 is a termination board for HART analog input module. This termination board not only measures analog signal but also provides isolated power source for the field devices. In other words, this board supports both active and passive loop. Besides, thie board also has short circuit protection for the isolated power, the loop current will be limited when circuit is shorted or the current is too large. Moreover, the removable fuse can protect loop device when high inrush current occur, these fuses also have physical indicator when broken.

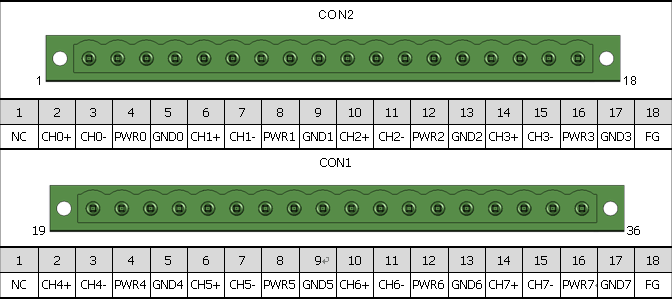

PIN Assignments

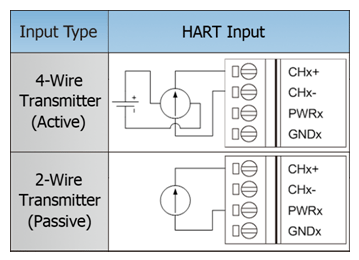

Wiring

Applications

Building Automation
Factory Automation
Machine Automation
Remote Maintenance
Remote Diagnosis

Specifications

Analog Input
Channels	8 (Support Active and Passive Loop Wiring Connection)

Mechanical
Dimensions (mm)	135 x 214.6 x 25.5
Installation	DIN-Rail & wall mounting

Environment
Operating Temperature	-25 ~ 75 °C
Humidity	5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

DN-AIH-08 CR

Termination board for HART analog input with EMS protection and over-current protected and isolated passive loop power (RoHS)

Bo mạch kết nối 8 kênh đầu vào tương tự HART ICP DAS DN-AIH-08 CR

PIN Assignments

Wiring
