Bo mạch kết nối 8 kênh đầu vào tương tự AI ICP DAS DN-AII-08 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

Termination board for current input with EMS protection and over-current protected andisolated passive loop power

Gọi +84 904251826 để được trợ giúp

Bo mạch kết nối 8 kênh đầu vào tương tự AI ICP DAS DN-AII-08 CR

Features

Introduction

The DN-AII-08 is a termination board for current analog input module. This termination board not only measures analog signal but also provides isolated loop power source for the field devices. In other words, this board supports both active and passive loop. Besides, this board also has short circuit protection for the isolated power, the loop current will be limited when circuit is shorted or the current is too large. Moreover, the removable fuse can protect loop device when high inrush current occur, these fuses also have physical indicator when broken.

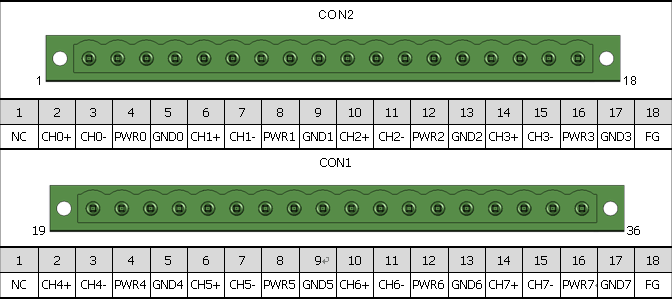

PIN Assignments

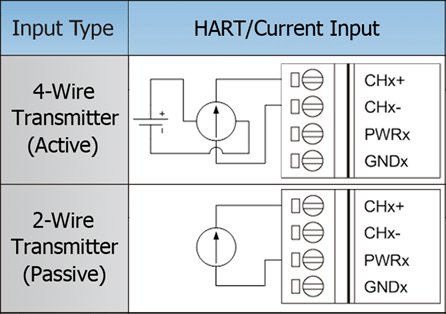

Wiring

Applications

  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis

Specifications

Analog Input
Channels 8 (Support Active and Passive Loop Wiring Connection)
Mechanical
Dimensions (mm) 135 x 214.6 x 25.5
Installation DIN-Rail & wall mounting
Environment
Operating Temperature -25 ~ 75 °C
Humidity 5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

DN-AII-08 CR  Termination board for current input with EMS protection and over-current protected and isolated passive loop power (RoHS)
