Cảm biến đo Momen xoắn trục quay không tiếp xúc 1 - 20000 Nm Lorenz DR-2112, DR-2112-P

Thương hiệu: Lorenz Messtechnik | Tình trạng: Còn hàng

Liên hệ

Rotating contactless torque sensors with angle/speed measurement and cylindrical shafts from Lorenz Messtechnik GmbH

THÔNG TIN SẢN PHẨM

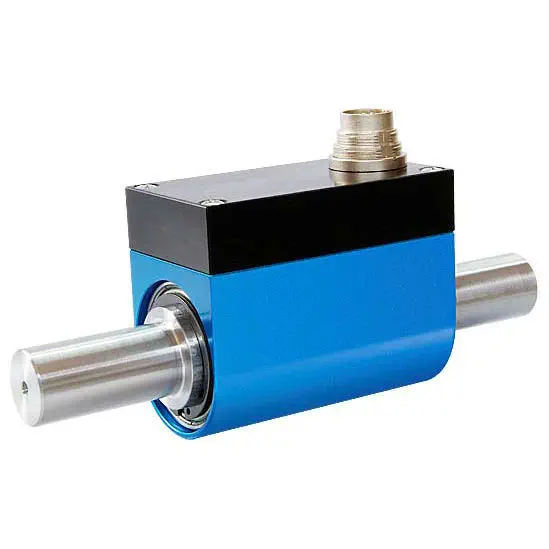

DR-2112, Analog Output Rotary Torque Sensor
The DR-2112 and DR-2112-R torque sensors have very short axial length and contactless data transmission, which means no signal falsification and maintenance-free. These unit have analog output.

Features:

Contactless Rotary Torque Sensor
Round Shafts
Very Short Axial Length
Speeds up to 15000 RPM
Connection: 12-pin Series 581 Connector with Speed Option
Accuracy Class 0.05% Available
Analog Output ±5V (±10V Option)

DR-2112 - Specifications

Type	Rotary
Full Scale	0.1 Nm
	0.2 Nm
	0.5 Nm
	1 Nm
	2 Nm
	5 Nm
	10 Nm
	15 Nm
	20 Nm
	30 Nm
	50 Nm
	100 Nm
	200 Nm
	500 Nm
	1000 Nm
	2000 Nm
	5000 Nm
	10000 Nm
	20000 Nm
Max Speed	5000 RPM
	5500 RPM
	8000 RPM
	10000 RPM
	12000 RPM
	15000 RPM
Output	±5 V DC
	±10 V DC
	Speed/Angle (TTL)
Precision	±0.10 % FS
	±0.20 % FS
Excitation	12 V - 28 V DC
Drive Side	Round Shaft
Test Side	Round Shaft
IP Rating	IP50
Min Temperature	0 °C
Max Temperature	60 °C

Download

Suitable Coupling (PDF Datasheet):	0.1..30 N·m 50..20000 N·m
Suitable Connection Cable (PDF Datasheet):	Connection cable, 3 m, with 12-pin female cable connector and free soldered ends Connection cable, 3 m, with 12-pin female angle cable connector and free soldered ends
PDF Datasheet:	DR-2112, DR-2112-P: 080887c_DR-2112_en.pdf DR-2412, DR-2412-P: 080889d_DR-2412_en.pdf
