Cảm biến đo Momen xoắn trục quay không tiếp xúc 0.2 - 200 Nm Lorenz DR-2477, DR-2477-P

Thương hiệu: Lorenz Messtechnik | Tình trạng: Còn hàng

Liên hệ

Torque transducer DR-2477, rotating contactless, low cost with cylindrical shafts from Lorenz Messtechnik GmbH

THÔNG TIN SẢN PHẨM

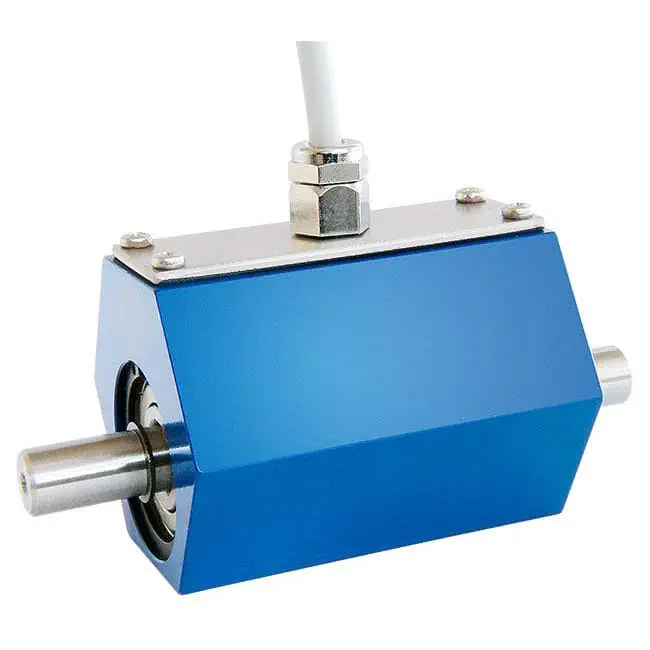

DR-2477, Rotary Torque Sensor
The DR-2477 torque sensor has a very short axial length and contactless data transmission, which means no signal falsification and maintenance-free. This cost-effective unit is designed for stiff and floating sensor assemblies.

Features:

Contactless Rotary Torque Sensor
Round Shafts
Very Short Axial Length
Connection: 1m Integral Cable
Analog Output ±5V (±10V Option)

DR-2477 - Specifications

Type	Rotary
Full Scale	0.2 Nm
	0.5 Nm
	1 Nm
	2 Nm
	5 Nm
	10 Nm
	15 Nm
	20 Nm
	50 Nm
	100 Nm
	200 Nm
Max Speed	8000 RPM
	10000 RPM
Output	±5 V DC
	±10 V DC
Precision	±0.25 % FS
Excitation	12 V - 28 V DC
Drive Side	Round Shaft
Test Side	Round Shaft
IP Rating	IP50
Min Temperature	0 °C
Max Temperature	60 °C

Download

Suitable Coupling (PDF Datasheet):	Stiff Sensor Assembly: 0.2..20 N·m 50..200 N·m Floating Sensor Assembly: 0.2..20 N·m 50..200 N·m
PDF Datasheet:	080895a_DR-2477_en.pdf

Suitable Coupling (PDF Datasheet):

Stiff Sensor Assembly:
0.2..20 N·m
50..200 N·m

Floating Sensor Assembly:
0.2..20 N·m
50..200 N·m

PDF Datasheet:

080895a_DR-2477_en.pdf
