Dual range torque sensors, rotating contactless with angle/speed measurement & cylindrical shafts from manufacturer & distributor Lorenz Messtechnik GmbH
Cảm biến đo Momen xoắn trục quay không tiếp xúc Dual dải đo 0.5 / 5 - 2000 / 20000 Nm Lorenz DR-2508, DR-2508-P

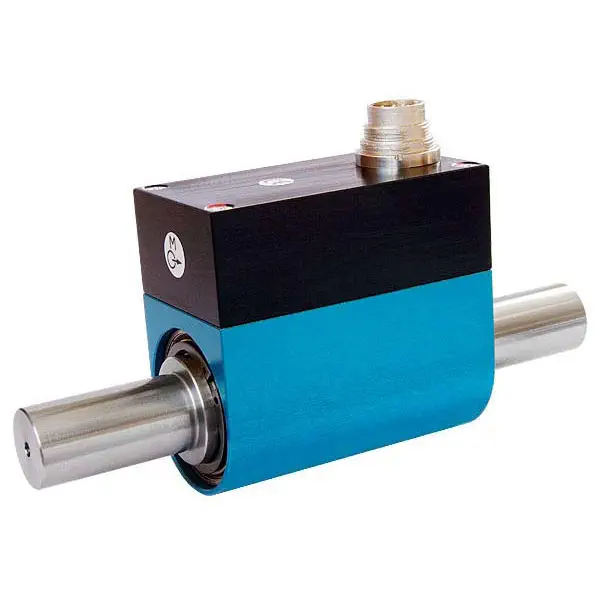

DR-2508, Digital Output Dual-Range Rotary Torque Sensor
The DR-2508 has a contactless and digital signal transmission from rotor to stator, which means no signal falsification and maintenance-free. This unit operates with analog output.
Features:
DR-2508 - Specifications
Type | Rotary |
Dual Range | |
Dual Range | 1:10 |
Full Scale | 0.5 Nm |
1 Nm | |
2 Nm | |
3 Nm | |
5 Nm | |
10 Nm | |
20 Nm | |
30 Nm | |
50 Nm | |
100 Nm | |
200 Nm | |
300 Nm | |
500 Nm | |
1000 Nm | |
2000 Nm | |
5000 Nm | |
10000 Nm | |
20000 Nm | |
Max Speed | 5000 RPM |
5500 RPM | |
7000 RPM | |
10000 RPM | |
12000 RPM | |
15000 RPM | |
Output | RS-485 |
Speed/Angle (TTL) | |
Precision | ±0.10 % FS |
Excitation | 12 V - 28 V DC |
Drive Side | Round Shaft |
Test Side | Round Shaft |
IP Rating | IP50 |
Min Temperature | 0 °C |
Max Temperature | 60 °C |
Download
Suitable Coupling (PDF Datasheet): | 0.5 / 5..3 / 30 N·m 5 / 50..2000 / 20000 N·m |
---|---|
Suitable Connection Cable (PDF Datasheet): |
Connection cable, 3 m, with 12-pin female cable connector and free soldered ends |
PDF Datasheet: | DR-2208, DR-2208-P: 080941a_DR-2208_en.pdf DR-2508, DR-2508-P: 080943c_DR-2508_en.pdf |
