Miễn phí vận chuyển với đơn hàng từ 10.000.000đCảm biến đo Momen xoắn trục quay không tiếp xúc Dual dải đo 0.5 / 5 - 2000 / 20000 Nm Lorenz DR-2531, DR-2531-P

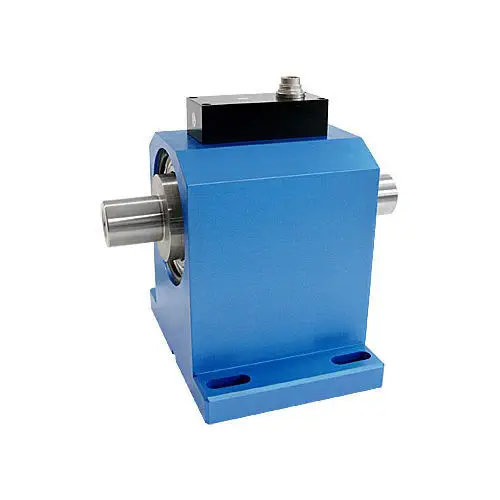

DR-2531, Dual Range Analog Output Rotary Torque Sensor
The DR-2531 has a contactless and digital signal transmission from rotor to stator, which means no signal falsification and maintenance-free.
Features:
DR-2531 - Specifications
| Type | Rotary |
| Dual Range | |
| Dual Range | 1:10 |
| Full Scale | 5 Nm |
| 10 Nm | |
| 20 Nm | |
| 30 Nm | |
| 50 Nm | |
| 100 Nm | |
| 200 Nm | |
| 300 Nm | |
| 500 Nm | |
| 1000 Nm | |
| 2000 Nm | |
| 5000 Nm | |
| 10000 Nm | |
| 20000 Nm | |
| Max Speed | 3500 RPM |
| 5500 RPM | |
| 7000 RPM | |
| 12000 RPM | |
| Output | ±5 V DC |
| ±10 V DC | |
| Speed/Angle (TTL) | |
| Precision | ±0.10 % FS |
| Excitation | 12 V - 28 V DC |
| Drive Side | Round Shaft |
| Test Side | Round Shaft |
| IP Rating | IP50 |
| Min Temperature | 0 °C |
| Max Temperature | 60 °C |
Download
| Suitable Coupling (PDF Datasheet): | 0.5 /5..3 / 30 N·m 5 / 50..2000 / 20000 N·m |
|---|---|
| Suitable Connection Cable (PDF Datasheet): |
Connection cable, 3 m, with 12-pin female cable connector and free soldered ends |
| PDF Datasheet: | DR-2531, DR-2531-P: 080945a_DR-2531_en.pdf DR-2831, DR-2831-P: 080947b_DR-2831_en.pdf |
