Miễn phí vận chuyển với đơn hàng từ 10.000.000đCảm biến đo Momen xoắn trục quay không tiếp xúc 0.005 - 150 Nm Lorenz DR-2600

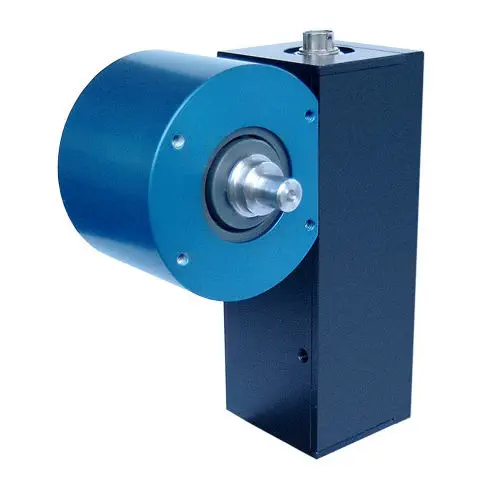

DR-2600, Digital Output Rotary Torque Sensor
The DR-2600 torque sensor has a very short axial length and contactless data transmission, which means no signal falsification and maintenance-free. The unit can perform auto-identification of measuring range, serial number and date of calibration.
Features:
DR-2600 - Specifications
| Type | Rotary |
| Full Scale | 0.005 Nm |
| 0.01 Nm | |
| 0.02 Nm | |
| 0.05 Nm | |
| 0.1 Nm | |
| 0.2 Nm | |
| 0.5 Nm | |
| 1 Nm | |
| 2 Nm | |
| 5 Nm | |
| 10 Nm | |
| 20 Nm | |
| 50 Nm | |
| 100 Nm | |
| 150 Nm | |
| Max Speed | 20000 RPM |
| 30000 RPM | |
| Output | RS-485 |
| Precision | ±0.10 % FS |
| Excitation | 12 V - 28 V DC |
| Drive Side | Round Shaft |
| Test Side | Round Shaft |
| IP Rating | IP50 |
| Min Temperature | 0 °C |
| Max Temperature | 60 °C |
Download
| Suitable Coupling (PDF Datasheet): | 0.005..20 N·m 50..150 N·m |
|---|---|
| Suitable Connection Cable (PDF Datasheet): |
Connection cable, 3 m, with 8-pin female cable connector and free soldered ends |
| PDF Datasheet: | DR-2500: 080897_DR-2500_en.pdf DR-2600: 080899b_DR-2600_en.pdf |
