Torque Flange, Rotating, Contactless, Bearingless DR-2800
Cảm biến đo Momen xoắn trục quay không tiếp xúc 50 - 10000 Nm Lorenz DR-2800

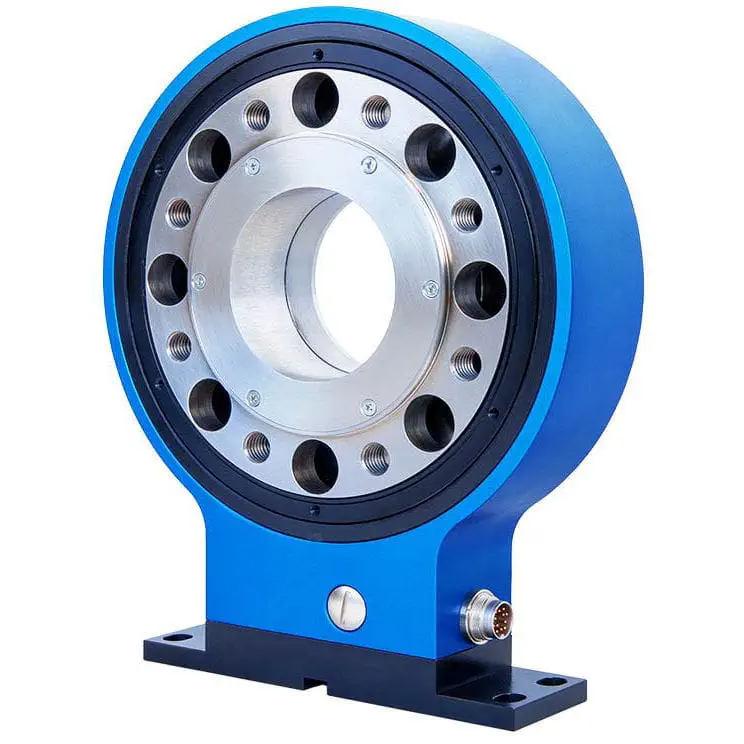

DR-2800, Flange Rotary Torque Sensor
The DR-2800 torque sensor is a reliable and durable unit. Its very short axial length and high torsional stiffness allow for simple handling and simple assembly. The unit is designed with a rotor-sided through hole and is maintenance-free.
Features:
DR-2800 - Specifications
Type | Rotary |
Full Scale | 50 Nm |
100 Nm | |
200 Nm | |
500 Nm | |
1000 Nm | |
2000 Nm | |
5000 Nm | |
Max Speed | 8000 RPM |
10000 RPM | |
12000 RPM | |
15000 RPM | |
Output | ±5 V DC |
±10 V DC | |
Speed/Angle (TTL) | |
Precision | ±0.10 % FS |
Excitation | 12 V - 28 V DC |
Drive Side | Flange |
Test Side | Flange |
Min Temperature | 0 °C |
Max Temperature | 60 °C |
Download
Suitable Connection Cable (PDF Datasheet): |
Connection cable, 3 m, with 12-pin female cable connector and free soldered ends |
---|---|
PDF Datasheet: | 080935f_DR-2800_en.pdf |
