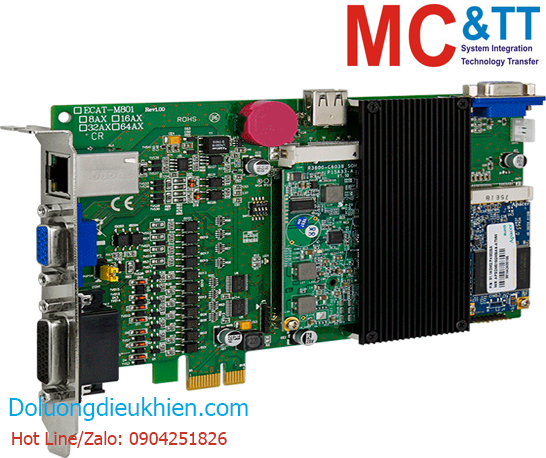

Card PCI Express EtherCAT Master 8-axis ICP DAS ECAT-M801-8AX CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

EtherCAT Master, 8-axis

THÔNG TIN SẢN PHẨM

Tính năng

• Up to 8-axis motion control
• Up to 64 slaves
• Synchronized motion (E-GEAR, E-CAM)
• Virtual axes
• Multi-axis linear interpolation
• On board 13 DI and 13 DO
• On board 2 encoder interfaces with compare trigger output

Giới thiệu

EtherCAT (Ethernet for Control Automation Technology) is an open, high-performance fieldbus system that makes Ethernet technologies available at the I/O level. EtherCAT provides flexible wiring, fast communication and many other nice features. It needs a master to control many slaves. ICP DAS provides PC master cards for users to build their motion related applications. This card can offer multi-axis motion and I/O control functions by its own built-in CPU. In this way, the CPU loading of PC can be reduced dramatically. In the mean while, ICP DAS also provides many I/O slave modules for users to choose from. Since EtherCAT technology is an industrial standard, those modules can work together in a system with 3rd-party EtherCAT slaves as well.

Accessories

Ứng dụng
• Motion control
• I/O control
• Data acquisition system

Thông số kỹ thuật

Hardware
Connector	RJ45 x1 DB-26 (Female) DB-15 (Female)

Encoder Input
No. of Axes	2
Type	Quadrant, CW/CCW, Pulse/Dir.
Response Speed	1 MHz
Resolution	32-bit
Compare Trigger Output	2-ch

Digital Input
Channels	13
Type	Wet Contact
Sink/Source (NPN/PNP)	Sink/Source
ON Voltage Level	+19 V ~ + 24 V
OFF Voltage Level	+11 V Max.
Isolation	3000 VDC

Digital Output
Channels	13
Type	Open Collector
Sink/Source (NPN/PNP)	Sink
Load Voltage	+24 V
Load Current	100 mA/ch
Isolation	3000 Vrms

PC Bus
Type	PCI Express x1

EtherCAT
Ports	1 x RJ-45
No. of Axes	Max. 8
No. of Nodes	Max. 64
Data Transfer Medium	Ethernet Cable (Min. CAT 5e), Shielded

Mechanical
Dimensions (mm)	135 x 192 x 21.5 (W x L x D)

Environment
Operating Temperature	0 ~ +60 °C
Storage Temperature	-20 ~ +70 °C
Humidity	0 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Thông tin mua hàng

ECAT-M801-8AX CR

EtherCAT Master, Max. 8-Axis Synchronously, 13-channel Digital I/O, 2-Axis Encoder (RoHS)
without cables and daughter board

Card PCI Express EtherCAT Master 8-axis ICP DAS ECAT-M801-8AX CR

Accessories
