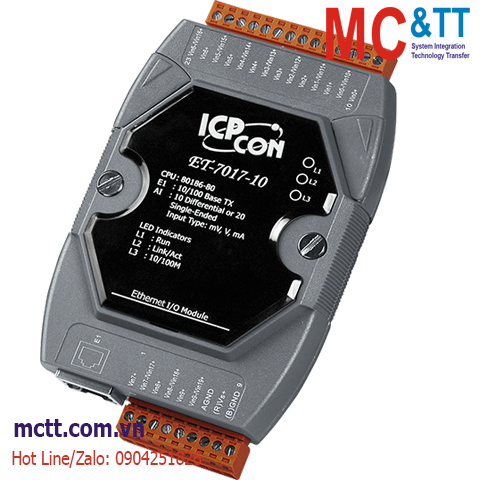

Module Ethernet Modbus TCP 10/20 kênh AI ICP DAS ET-7017-10 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Ethernet I/O Module with 10/20-ch AI

THÔNG TIN SẢN PHẨM

Features

Built-in Web Server
Web HMI
Support for both Modbus TCP and Modbus UDP Protocols
Communication Security
Dual Watchdog
Wide Operating Temperature Range: -25 ~ +75°C
Built-in I/O
- AI: 10/20 Channels

Introduction

The ET-7017-10/PET-7017-10/ET-7217-10/PET-7217-10 is a module with 10-channel differential or 20-channel single-ended analog inputs. It provides programmable input range on all analog channels (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA). Each analog channel is allowed to configure an individual range and has 240 Vrms high overvoltage protection. Each analog input can be programmed to accept voltage or current as input depending upon the position of corresponding jumper. The sampling rate of ET-7017-10/PET-7017-10/ET-7217-10/PET-7217-10 has two modes; fast mode and normal mode for your consideration. ET-7017-10/PET-7017-10/ET-7217-10/PET-7217-10 also has qualification for 4 kV ESD protection as well as 3000 VDC intra-module isolation.

Specification

CPU Module
Watchdog Timer	Yes, Module (0.8 second), Communication (Programmable)

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power Line
ESD (IEC 61000-4-2)	±4 kV Contact for Each Terminal ±8 kV Air for Random Point
Surge (IEC 61000-4-5)	±0.5 kV for Power Line

LED Indicators
Status	1 x Power, 2 x Ethernet

Software
Built-in Web Server	Yes

Analog Input
Channels	10 differential or 20 single-ended (Note1), software selectable
Type	Voltage Current
Range	±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable)
Resolution	16-bit
Accuracy	Normal Mode: ±0.1% Fast Mode: ±0.5% or better
Sampling Rate	Normal Mode: 10 Samples/Second (Total) Fast Mode: 50 Samples/Second (Total)
Input Impedance	Voltage: 2 MΩ (Differential), 1MΩ(Single-ended) Current: 125 Ω
Common Mode Rejection	86 dB Min.
Normal Mode Rejection	100 dB
Common Voltage Protection	±200 VDC
Overvoltage Protection	Differential: 240 Vrms Single-ended: 150 Vrms
Overcurrent Protection	Yes, 50 mA at 110 VDC
Individual Channel Configuration	Yes
Open Wire Detection	Yes, for 4 ~ 20 mA only
Zero Drift	±20 μV/°C
Span Drift	±25 ppm/°C
Isolation	±400 VDC, Virtual Channel to Channel Isolation

Ethernet
Ports	1 x RJ-45, 10/100 Base-TX
Security	ID, Password and IP Filter
Protocol	Modbus TCP, Modbus UDP

Power
Reverse Polarity Protection	Yes
Consumption	2.8 W
Powered from Terminal Block	10 ~ 30 VDC

Mechanical
Dimensions (mm)	72 mm x 123 mm x 35 mm (W x L x H)
Installation	DIN-Rail or Wall mounting

Environmental
Operating Temperature	-25 ~ +75°C
Storage Temperature	-30 ~ +80°C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

ET-7017-10 CR

Ethernet I/O Module with 10/20-ch AI (RoHS)
