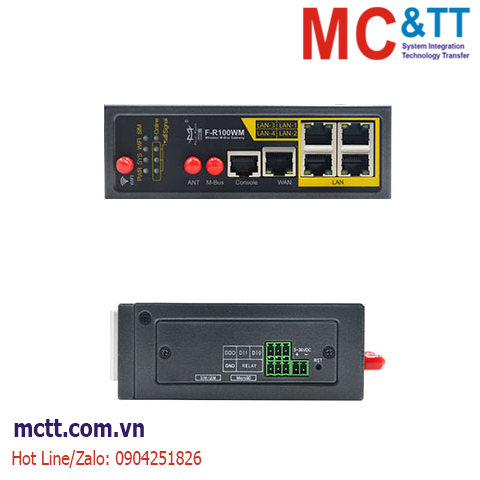

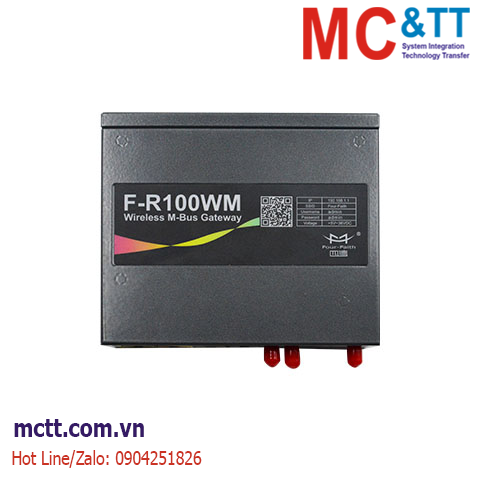

Miễn phí vận chuyển với đơn hàng từ 10.000.000đRouter công nghiệp M-Bus + 3G/4G + Wifi Four-Faith F-R100WM
Four-Faith Wireless M-Bus Gateway F-R100WM based on M-Bus protocol with compliant standard EN13757-3, which is widely used in Europe energy market for AMI (Advanced Metering Infrastructure) applications.
Wireless M-Bus Gateway F-R100WM operates in 169/433/868MHz free-license band, and supports up to 200 meters access simultaneously.
Wireless M-Bus Gateway F-R100WM can work in listen, normal or Install mode, depends on the openness of the network.
Wireless M-Bus Gateway F-R100WM can receive data from all access slaves, and then transparent transmission data to cloud server by 3G, 4G or ethernet. Also, Wireless M-Bus Gateway F-R100WM supports TCP/UDP/FTP/HTTP/VPN Client/VPN Sever/DHCP protocols, and with AES128 data encryption, and contains many interface types, including GPIO, WAN, LAN, WIFI and SIM/UIM.
Wireless M-Bus Gateway F-R100WM is especially suitable for communication with heat, water, electricity and gas meters through wireless M-Bus technology.
Tính năng
Thông số kỹ thuật
| F-R100WM-W WMBUS+WCDMA WIFI Router | |
| Standard & Bands | Support DC-HSPA+/HSPA+/HSDPA/HSUPA/UMTS 850/1900/2100MHz tri-band, 850/900/1900/2100MHz quad-band (optional) Support GSM 850/900/1800/1900MHz quad-band Support GPRS/EDGE CLASS 12 |
| Band Width | DC-HSPA+: downlink rate 42Mbps, uplink rate 5.76Mbps HSPA+: downlink rate 21Mbps, uplink rate 5.76Mbps HSDPA: downlink rate 7.2Mbps, HSUPA: uplink rate 5.76Mbps UMTS: 384Kbps |
| Output Power | < 24dBm |
| Receive Sensitivity | < -109dBm |
| F-R100WM-V WMBUS+EVDO WIFI Router | ||
| Standard & Bands | Support CDMA2000 1X EVDO Rev A 800MHz, 800/1900MHz(optional), 450MHz (optional) Support CDMA2000 1X EVDO Rev B 800/1900MHz (optional) Support IS-95 A/B and CDMA2000 1xRTT wireless network |
|
| Band Width | EXDO Rev.A: downlink rate 3.1Mbps, uplink rate 1.8Mbps EXDO Rev.B: downlink rate 14.7Mbps, uplink rate 5.4Mbps(optional) |
|
| Output Power < 23dBm | ||
| Receive Sensitivity < -104dBm | ||
| F-R100WM-TL WMBUS+TDD LTE WIFI Router | ||
| Standard & Bands | Support LTE TDD 2600/1900/2300MHz (Band 38/39/40), 800/1400/1800(Band27/61/62)(optional) Support TD-SCDMA 2010/1900MHz (A/F Band 34/39) Support GSM/GPRS/EDGE 900/1800/1900MHz |
|
| Band Width | LTE TDD: downlink rate 61Mbps, uplink rate 18Mbps TD-HSPA+: downlink rate 4.2Mbps, uplink rate 2.2Mbps |
|
| Output Power < 23dBm | ||
| Receive Sensitivity < -97dBm | ||
| F-R100WM-FL WMBUS+FDD LTE WIFI Router | ||
| Standard & Bands | Support LTE FDD 2600/2100/1800/900/800MHz, 700/1700/2100 MHz(optional) Support DC-HSPA+/HSPA+/HSDPA/HSUPA/UMTS 850/1900/2100MHz tri-band, 850/900/1900/2100MHz quad-band (optional) Support EDGE/GPRS/GSM 850/900/1800/1900MHz Support GPRS CLASS 10 Support EDGE CLASS 12 |
|
| Band Width | LTE FDD: downlink rate 100Mbps, uplink rate 50Mbps DC-HSPA+: downlink rate 42Mbps, uplink rate 5.76Mbps HSPA+: downlink rate 21Mbps, uplink rate 5.76Mbps HSDPA: downlink rate 7.2Mbps, HSUPA: uplink rate 5.76Mbps UMTS: 384Kbps |
|
| Output Power < 23dBm | ||
| Receive Sensitivity < -97dBm | ||
| F-R100WM-L WMBUS+LTE WIFI Router | ||
| Standard & Bands | Support LTE FDD, LTE TDD, EVDO, WCDMA, TD-SCDMA, CDMA1X, and GPRS/EDGE | |
| Band Width | LTE FDD: downlink rate 100Mbps, uplink rate 50Mbps LTE TDD: downlink rate 61Mbps, uplink rate 18Mbps DC-HSPA+: downlink rate 42Mbps, uplink rate 5.76Mbps TD-HSPA+: downlink rate 4.2Mbps, uplink rate 2.2Mbps EVDO Rev.A: downlink rate 3.1Mbps, uplink rate 1.8Mbps |
|
| Output Power < 23dBm | ||
| Receive Sensitivity < -97dBm | ||
| WIFI | |
| Standard Support standard IEEE802.11b/g/n | |
| Band Width | IEEE802.11b/g: the maximum speed rate up to 54Mbps IEEE802.11n: the maximum speed rate up to 150Mbps |
| Security Support WEP/WPA/WPA2 encryption types | |
| Output Power 20dBm(11n), 24dBm(11g), 26dBm(11b) | |
| Receive Sensitivity <-72dBm@54Mbps | |
| WM-BUS | |
| Protocol Compliant with EN13757-3/4/5 standard or OMS standard | |
| Bands Free-license 169/433/868MHz | |
| Range Up to 800m | |
| Output Power 14dBm@868MHz; 14dBm@433MHz; 25dBm@169MHz | |
| Receive Sensitivity -110dBm@M-Bus | |
| Radio Rate 4.8, 32.768 or 100kbps | |
| Modes S, T, C, N | |
| Role Repeater or Master | |
| HARDWARE | |
| CPU Industrial 32bits CPU | |
| FLASH 16MB (Able extend to 64MB) | |
| DDR2 | 128MB |
| INTERFACE | |
| WAN 1*10/100 Mbps WAN | |
| LAN 4*10/100 Mbps LAN | |
| GPIO 2*DI \ 1*DO | |
| Console 1*Console (RS232/RS485) | |
| TF | 1*TF (32G) |
| Indicators “PWR”, “SYS”, “WIFI”, “SIM”, “WMBUS” | |
| Antenna |
Cellular: 1* standard SMA female antenna, 50-ohm, lighting protection (optional) WM-BUS: 1* standard SMA female antenna, 50-ohm, lighting protection (optional) WIFI: 1* standard SMA male antenna, 50-ohm, lighting protection (optional) |
| SIM/UIM 1*1.8/3.3V SIM/UIM | |
| POWER SUPPLY | |
| Range DC 5~36 V | |
| Standard DC 12V/1.5A | |
| POWER CONSUMPTION | |
| Stand By 4G: 280 ~ 330mA@12V 3G: 268 ~ 295mA@12V | |
| Communication 4G: 310 ~ 563mA@12V 3G: 279 ~ 360mA@12V | |
| PHYSICAL PROPERTIES | |
| Dimensions 133.0x115.7x45.0mm | |
| Weight | 520g |
| Shell IP30 | |
| OTHERS | |
| Operating Temperature -35~+75ºC | |
| Storage Temperature -40~+85ºC | |
| Relative Humidity 95% (non-condensing) | |
Thông tin đặt hàng
| Model | Description | WAN | LAN | Cellular | Wifi | WM-Buss | SIM |
| F-R100WM-W | M-Bus+WCDMA WIFI ROUTER | 1 | 4 | 1 | 1 | 1 | 1 |
| F- R100WM -V | M-Bus+EVDO WIFI ROUTER | 1 | 4 | 1 | 1 | 1 | 1 |
| F- R100WM -TL | M-Bus+TDD LTE WIFI ROUTER | 1 | 4 | 1 | 1 | 1 | 1 |
| F- R100WM -FL | M-Bus+FDD LTE WIFI ROUTER | 1 | 4 | 1 | 1 | 1 | 1 |
| F- R100WM -L | M-Bus+LTE WIFI ROUTER | 1 | 4 | 1 | 1 | 1 | 1 |
