15.6" capacitive screen, 16.77 million true color, 1920*1080px, quad-core CPU, flash memory 8G, memory 1G, 2 COM ports, standard 1 USB HOST, 1 USB SLAVE, 1 network ports, metal front and rear shell
Cam kết 100% chính hãng
Hoàn tiền 111% nếu hàng giả
Giao hàng nhanh chóng & an toàn
Hàng hóa đầy đủ CO, CQ
Hỗ trợ 24/7
Khuyến mãi đặc biệt !!!
Áp dụng Phiếu quà tặng/ Mã giảm giá theo ngành hàng.

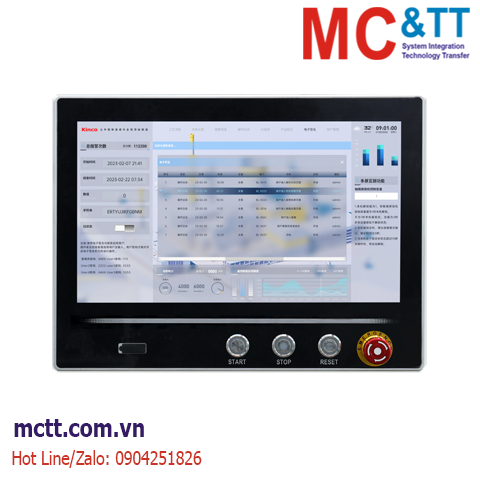

Miễn phí vận chuyển với đơn hàng từ 10.000.000đMàn hình cảm ứng HMI 15.6 inch Kinco F2156E-TX (2 COM, 1 USB Host, 1 Ethernet)
Tính năng
Thông số kỹ thuật
|
Performance specification |
|
|
Display size |
15.6" TFT |
| Display area | 344.16mm(W)x163.2mm(H) |
|
Resolution |
1920*1080px |
|
Display color |
16.2M color |
| Visual angle | 89/89/89/89(L/R/U/D) |
| Contrast ratio | 1000:1 |
|
Backlight |
LED |
|
Brightness |
300cd/m2 |
|
Backlight life |
More than 30000 hours |
|
Touch Panel |
Reinforced glass capactive touch panel |
|
CPU |
Quad-core ARM 1.8GHz |
| Memory | 8GB eMMC +1GB RAM |
|
RTC |
Built-in RTC + 512KB recipe |
|
Extensible memory |
1 USB Host |
|
Printer port |
USB Host |
|
Ethernet |
LAN0:10/100/1000 Mbps |
|
Program download |
Ethernet port/USB Slave/U disk |
|
COM port |
COM0:RS232/RS485/RS422;COM2:RS232 |
|
Electrical specification |
|
|
Input power supply |
DC10V~DC28V, Built-in isolation power supply |
|
Rated power |
15W @24V DC |
| Allowable loss of power |
<3ms |
|
Insulation resistance |
Over 50MΩ@500V DC |
|
Hi-pot test |
500V AC 1 minute |
|
Structure specification |
|
|
Shell material |
Metal |
|
Shape size |
397*297*46mm |
|
Cutout size(mm) |
|
|
Weight |
4 Kg |
|
Environment specification |
|
|
Operating temperature |
0～50℃ |
|
Operating humidity |
10～90% non-condensing |
|
Storage temperature |
-20～60℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10~500Hz, 30m/s², X,Y,Z direction/hour |
|
Cooling method |
Natural air cooling |
|
Certification |
|
|
Degree of protection |
Conforming to IP65 certification (4208-93) |
|
CE certification |
CE Compliant(EN61000-6-4:2007+A1:2011，EN61000-6-2:2005) |
|
Software |
|
|
Configuration software |
Kinco DToolsPro |
Thông tin đặt hàng
Tài liệu
Datasheet
User Manual
Software
