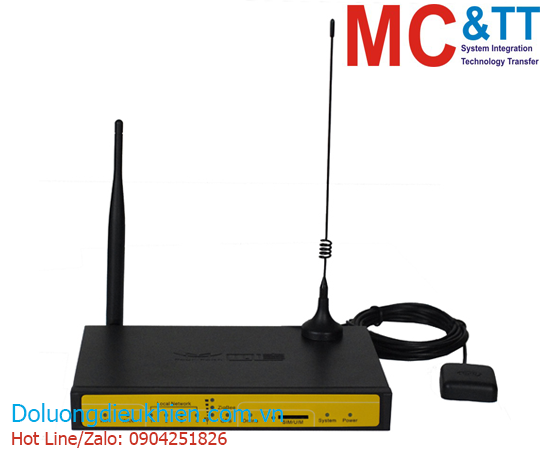

F7134: Router công nghiệp GPRS + GPS + 4 LAN + 1 WAN + RS-232 + APN/VPN + Wi-Fi

Thương hiệu: Four-Faith | Tình trạng: Còn hàng
Liên hệ

F7134: Router công nghiệp GPRS + GPS + 4 LAN + 1 WAN + RS-232 + APN/VPN + Wi-Fi

Gọi +84 904251826 để được trợ giúp

F7134: Router công nghiệp GPRS + GPS + 4 LAN + 1 WAN + RS-232 + APN/VPN + Wi-Fi

Features

●  GPRS
●  Support 4 LAN ports
●  Powerful WIFI
●  Signal strength display in real time
●  Support VPN link
●  CPU processing speed increased by 3 times
●  Controllable bandwidth resource allocation
●  Low power consumption
●  Supporting device management platform
●  GPS







Reliable networking and communications

Using high-performance industrial-grade wireless modules, industrial grade high stability high precision components, -35 ~ +75 º C extremely wide temperature design, easily adapt to the high-temperature cold working environment for unmanned systems to provide reliable group network with stable communication

Data processing and transmission speed upgrade
CPU processing speed increased by 3 times, WIFI transmission speed increased to 150 Mbps from 54 Mbps, built-in FLASH RAM capacity enhanced to 2 times, to meet the demand for wireless transmission of large amount of data, such as pictures, video, etc. Clearer and smoother.



Controllable bandwidth resource allocation

New flow control, traffic recording, real-time network speed display function, depending on the type of network protocol, bandwidth allocation mode in accordance with a pre-customized management

Supporting device management platform
Support for centralized management of a large number of devices, batch configuration and upgrade function, more efficient implementation and management of large projects.





Signal strength display in real time

Real-time display of the network signal strength, and enhance the efficiency of on-site management and maintenance

Provide more security deployment scenarios

Support VPN link, the increase on the basis of the common VPN PPTP server, the L2TP server, OpenVPN server, OpenVPN client support, network security applications deployment options richer, more flexible



A variety of savings flows and reduce power consumption mode

From time to time on the assembly line and the timer switch function, support a variety of upper and lower trigger modes, including text messages, phone ringing trigger on the offline mode, serial data, network data, effectively saving flow, reduce power consumption.。

Powerful WIFI

WIFI support 802.11b/g/n, support WIFI the AP, AP Client, repeater, repeater bridge and WDS, etc., and support for WEP, WPA and other encryption to meet more WIFI communication needs. WIFI integrated design with built effectively enhance the stability of the product.



Specification

Wireless Specification

Item Content
Cellular Module Industrial cellular module
Standard and Band EGSM900/GSM1800MHz, GSM850/900/1800/1900MHz(optional)
Compliant to GSM phase 2/2+
GPRS class 10, class 12(optional)
Bandwidth 85.6Kbps
TX power GSM850/900: <33dBm
GSM1800/1900: <30dBm
RX sensitivity <-107dBm

WIFI Specification

Item Content
Standard IEEE802.11b/g/n
Bandwidth IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max)
Security WEP, WPA, WPA2, etc.
WPS (optional)
TX power 21.5dBm(11g),26dBm(11b)
RX sensitivity <-72dBm@54Mpbs

GPS Specification

Item Content
GPS Module Industrial GPS module
Receiver Type 50-channle
GPS L1(1575.42MHz)C/A code
SBAS: WAAS,EGNOS,MSAS,GAGAN
Support GALILEO
Max. update rate 4 Hz
Accuracy Position: 2.5m CPE
SBAS: 2.0m CPE
Acquisition Cold starts: 29S
Warm starts: 29S
Aided starts: <1S
Hot starts: <1S
Sensitivity Tracking: -160dBm
Reacquisition: -160dBm
Cold starts: -144dBm
Timing accuracy RMS: 30ns
99%: <60ns
Granularity: 21ns
Time pulse Configurable, 0.25 to 1000Hz

 Hardware System

Item Content
CPU Industrial 32bits CPU
FLASH 8MB(Extendable to 64MB)
SDRAM 64MB

 Interface Type

Item Content
WAN 1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
LAN 4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
Serial 1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space(optional), mark(optional)
Baud rate: 2400~115200 bps
Indicator "Power", "System", "Online", "GPS", " Local Network ", "WAN", "WIFI",“Signal Strength”.
Antenna Cellular: Standard SMA female interface, 50 ohm
WIFI: Standard SMA male interface, 50 ohm
GPS: Standard SMA female interface, 50 ohm
SIM/UIM Standard 3V/1.8V user card interface, 15KV ESD protection
Power Standard 3-PIN power jack, reverse-voltage and overvoltage protection
Reset Restore the router to its original factory default settings


 Power Input

Item Content
Standard Power DC 12V/1.5A
Power Range DC 5~35V
Consumption <650mA (12V)

 Physical Characteristics

Item Content
Housing Iron, providing IP30 protection
Dimensions 206x135x28 mm
Weight 795g

 Environmental Limits

Item Content
Operating Temperature -35~+75ºC(-31~+167℉)
Storage Temperature -40~+85ºC (-40~+185℉)
Operating Humidity 95% ( unfreezing)
