F8916-L: Modem công nghiệp 2.5G/3G/4G +LoRa+ 2 cổng RS-232 + 1 cổng RS-485
Features
● With 2.5G/3G/4G +LoRa Dual Wireless Link
● LoRa Field Tested Communication Distance >11.5 KM, Industry Leading
● Suitable For Various Kinds of Non-Human On-Site Industrial Applications. Offering 24/7 Stability
● Powerful Network Switching Capability
● Integrated Modbus Standard Communication Protocol
● Multi-Data Center Synchronous Transmission
● Ultra-High Receiver Sensitivity, Reaching a Staggering -140 dBm
● Provides Additional Security Measures. Data Transmission Up To Financial-Level Standards
● Rich Interface. Easy To Use
● Remote Equipment Configuration, Over-The-Air Updates and Maintenance

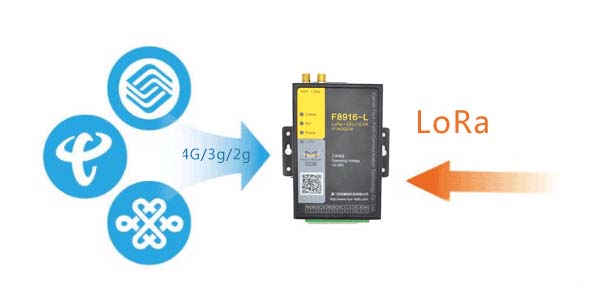

With 2.5G/3G/4G +LoRa Dual Wireless Link
The terminal has 2.5G/3G/4G public network wireless communication plus LoRa wireless communications, by using the LoRa network and 2.5G/3G/4G networks to provide customers with wireless data transmission function. This is a perfect choice for near distance networks and remote transmissions.

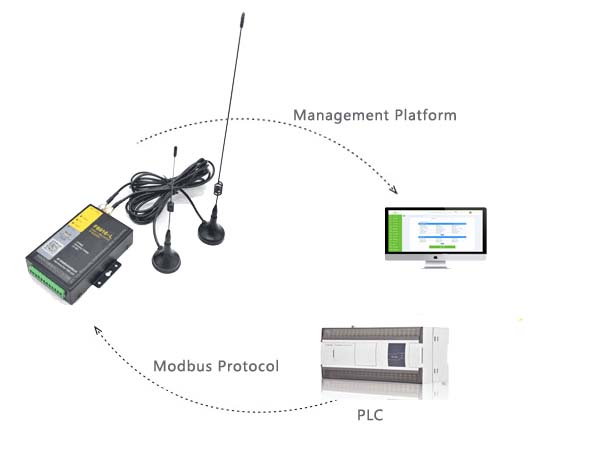

Integrated Modbus Standard Communication Protocol
The remote computer can realize the remote data acquisition and transmission through the 2.5G/3G/4G networks and LoRa network.

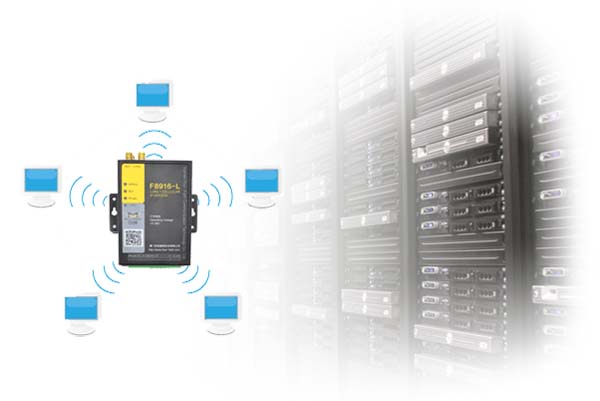

Multi-Data Center Synchronous Transmission
Support multi-data center backup transmission and multi-data center synchronous transmission (5 data centers), applicable to fast or large-scale information transmission.
Suitable For Various Kinds of Non-Human On-Site Industrial Applications. Offering 24/7 Stability
With an intelligent Anti-Disconnection mechanism, the wireless communications is always online. It is also resistant to extreme temperatures, moisture, lightning and various other natural environments. Along with a high level EMC protection mechanism that allows the module to continue functioning around strong electro magnetic fields.
Ultra-High Receiver Sensitivity, Reaching a Staggering -140 dBm
LoRa modulation technology improves the signal and creates a unique spectral widening process. The receiver sensitivity reaches a level of -140 dBm. It can be used in long-distance transmissions and provides reliability for the required occasion.
Specification
| Item |
Content |
| F8916-L-G LoRa+GPRS IP MODEM |
| Standard and Band |
EGSM 900/GSM 1800MHz, GSM 850/900/1800/1900MHz(optional)
Compliant to GSM phase 2/2+
GPRS class 10, class 12(optional) |
| Bandwidth |
85.6Kbps |
| TX power |
GSM850/900:<33dBm
GSM1800/1900:<30dBm |
| RX sensitivity |
<-107dBm |
| F8916-L-C LoRa+CDMA IP MODEM |
| Standard and Band |
CDMA2000 1xRTT 800MHz, 450MHz(optional) |
| Bandwidth |
153.6Kbps |
| TX power |
<30dBm |
| RX sensitivity |
<-104dBm |
| F8916-L-W LoRa+WCDMA IP MODEM |
| Standard and Band |
UMTS/WCDMA/HSDPA/HSUPA/HSPA+ 850/1900/2100MHz, 850/900/1900/2100MHz(optional)
GSM 850/900/1800/1900MHz
GPRS/EDGE CLASS 12 |
| Bandwidth |
DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps
HSPA+: Download speed 21Mbps, Upload speed 5.76Mbps
HSDPA: Download speed 7.2Mbps, HSUPA: Upload speed 5.76Mbps
UMTS: 384Kbps |
| TX power |
<24dBm |
| RX sensitivity |
<-109dBm |
| F8916-L-V LoRa+EVDO IP MODEM |
| Standard and Band |
CDMA2000 1X EVDO Rev A 800MHz, 800/1900MHz(optional), 450MHz(optional)
CDMA2000 1X EVDO Rev B 800/1900MHz(optional)
CDMA2000 1X RTT, IS-95 A/B |
| Bandwidth |
EVDO Rev. A: Download speed 3.1Mbps, Upload speed 1.8Mbps
EVDO Rev. B: Download speed 14.7Mbps, Upload speed 5.4Mbps (optional) |
| TX power |
<23dBm |
| RX sensitivity |
<-104dBm |
| F8916-L-TL LoRa+TDD LTE IP MODEM |
| Standard and Band |
LTE TDD 2600/1900/2300MHz(Band 38/39/40), 800/1400/1800MHz(Band 27/61/62)(optional)
TD-SCDMA 2010/1900MHz(A/F frequency band, Band 34/39)
GSM /GPRS/EDGE 900/1800/1900MHz |
| Bandwidth |
LTE TDD: Download speed 61Mbps, Upload speed 18Mbps
TD-HSPA+: Download speed 4.2Mbps, Upload speed 2.2Mbps
TD-HSPA: Download speed 2.2Mbps, Upload speed 2.2Mbps |
| TX power |
<23dBm |
| RX sensitivity |
<-97dBm |
| F8916-L-FL LoRa+FDD LTE IP MODEM |
| Standard and Band |
LTE FDD 2600/2100/1800/900/800MHz, 700/1700/2100MHz(optional)
DC-HSPA+/HSPA+/HSDPA/HSUPA/UMTS 850/900/2100MHz, 800/850/1900/2100MHz(optional)
EDGE/GPRS/GSM 850/900/1800/1900MHz
GPRS CLASS 10
GPRS CLASS 12 |
| Bandwidth |
LTE FDD: Download speed 100Mbps, Upload speed 50Mbps
DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps
HSPA+: Download speed 21Mbps, Upload speed 5.76Mbps
HSDPA: Download speed 7.2Mbps, HSUPA: Upload speed 5.76Mbps
UMTS: 384Kbps |
| TX power |
<23dBm |
| RX sensitivity |
<-97dBm |
| F8916-L-L LoRa+LTE IP MODEM |
| Standard and Band |
LTE FDD,LTE TDD,EVDO,WCDMA,TD-SCDMA,CDMA1X,GPRS/EDGE |
| Bandwidth |
LTE FDD: Download speed 100Mbps, Upload speed 50Mbps
LTE TDD: Download speed 61Mbps, Upload speed 18Mbps
DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps
TD-HSPA+: Download speed 4.2Mbps, Upload speed 2.2Mbps
EVDO Rev. A: Download speed 3.1Mbps, Upload speed 1.8Mbps |
| TX power |
<23dBm |
| RX sensitivity |
<-97dBm |
Cellular Specification
LoRa Specification
| Item |
Content |
Communication
Frequency Band |
410MHz - 441MHz，1000KHz Step，Recommend 433±5MHz，Factory Setting 433 MHz |
Indoor/Urban
Communication
Distance |
2km |
Outdoor/Visual
Communication
Distance |
9km |
| TX Power |
<30dBm |
| RX Sensitivity |
<-140dBm |
| Bandwidth |
6 level adjustable（0.3、0.6、1.0、1.8、3.1、5.5Kbps） |
| Channel Number |
32 |
Hardware System
| Item |
Content |
| CPU |
Industrial 32bits CPU |
| FLASH |
512KB(Extendable) |
| SRAM |
256KB |
Interface type
| Item |
Content |
| Serial |
2 RS232 port and 1 RS485(orRS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps |
| Indicator |
“Power”, “ACT”, "Online”,”LoRa” |

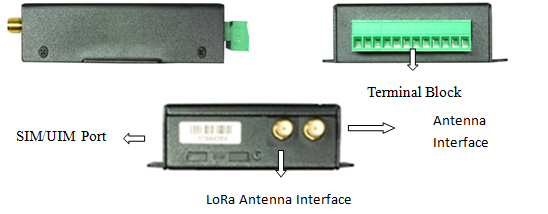

| Antenna |
Cellular :Standard SMA female interface, 50 ohm, lighting protection(optional)
LoRa : Standard SMA female interface, 50 ohm, lighting protection(optional) |
| SIM/UIM |
Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power |
Terminal block interface, reverse-voltage and overvoltage protection |
Note: There may be different components and interfaces in different model,please in kind prevail. |
Power supply
| Item |
Content |
| Standard Power |
DC 12V/0.5A |
| Power range |
DC 5~36V |
Consumption
| Working condition |
Consumption |
| Standby |
35~50 mA@12VDC 55~105 mA@5VDC |
| Communication |
45~165mA@12VDC(2G:45~55 mA 3G:80~165 mA 4G:75~95mA ) 105~365mA@5VDC(2G:105~115 mA 3G:165~365 mA 4G:150~200mA ) |
| Sleep |
3mA@12VDC 6mA@5VDC |
Physical Characteristics
| Item |
Content |
| Housing |
Iron, providing IP30 protection |
| Dimensions |
91x58.5x22 mm |
| Weight |
210g |
Environmental Limits
| Item |
Content |
| Operating Temperature |
-35~+75ºC(-31~+167℉) |
| Storage Temperature |
-40~+85ºC (-40~+185℉) |
| Operating Humidity |
95% ( unfreezing) |
Download
Specification
Use Manual
Ordering Information
| Model No. |
Description |
| F8916-L-G |
LoRa+GPRS IP MODEM |
| F8916-L-C |
LoRa+CDMA IP MODEM |
| F8916-L-W |
LoRa+WCDMA IP MODEM |
| F8916-L-V |
LoRa+EVDO IP MODEM |
| F8916-L-TL |
LoRa+TDD LTE IP MODEM |
| F8916-L-FL |
LoRa+FDD LTE IP MODEM |
| F8916-L-L |
LoRa+LTE IP MODEM |
