F8L10D-F8L10S: Module thu phát sóng công nghệ LoRa
F8L10D-F8L10S: Module thu phát sóng công nghệ LoRa
Features
● Strong Penetrating Ability, Long Transmission Distance (2-11.5km)
● Strong Anti-interference Ability and Reliable Transmission
● Low Consumption and Multi-stage Dormancy
● Multi-adjustable Transmission Power
LoRa Module Selection Table |
|||||||
Product Model |
Transmission (Visual Distance) |
Transmission Power |
Serial Cache (Unit:Byte) |
Packaging |
Antenna Type |
Product Dimensions (Unit:mm) |
Edition |
F8L10D-N-MS-N |
3.5km |
5~20dBm |
4000 |
SMT |
Antenna Pad |
24.4 x 37.5 x 4.2 |
Standard |
F8L10D-N-MS-U |
3.5km |
5~20dBm |
4000 |
SMT |
U.FL Interface |
24.4 x 37.5 x 4.2 |
Standard |
F8L10D-N-NS-S |
3.5km |
5~20dBm |
4000 |
DIP |
SMA Interface |
24.4 x 37.5 x 4.2 |
Standard |
F8L10D-N-NS-U |
3.5km |
5~20dBm |
4000 |
DIP |
U.FL Interface |
24.4 x 37.5 x 4.2 |
Standard |
F8L10D-E-MS-N |
11.5km |
30dBm |
4000 |
SMT |
Antenna Pad |
24.4 x 45.0 x 4.2 |
Enhanced |
F8L10D-E-MS-U |
11.5km |
30dBm |
4000 |
SMT |
U.FL Interface |
24.4 x 45.0 x 4.2 |
Enhanced |
F8L10D-E-NS-S |
11.5km |
30dBm |
4000 |
DIP |
SMA Interface |
24.4 x 45.0 x 4.2 |
Enhanced |
F8L10D-E-NS-U |
11.5km |
30dBm |
4000 |
DIP |
U.FL Interface |
24.4 x 45.0 x 4.2 |
Enhanced |
F8L10S-N-MS-N |
3.5km |
5~20dBm |
128 |
SMT |
Antenna Pad |
24.0 x 28.0 x 4.2 |
Cost-Effective |
F8L10S-N-NS-S |
3.5km |
5~20dBm |
128 |
DIP |
SMA Interface |
24.0 x 28.0 x 4.2 |
Cost-Effective |
F8L10S-N-NS-N |
3.5km |
5~20dBm |
128 |
DIP |
Antenna Pad |
24.0 x 28.0 x 4.2 |
Cost-Effective |
F8L10-N-MS-N |
3.5km |
5~20dBm |
0 |
SMT |
External Pin |
16.0 x 16.0 x 3.0 |
Core |
Remarks:
F8L10D module can choose from the following frequencies: 410-441MHz or 863-870MHz.
F8L10S module can choose from the following frequencies: 410-441MHz.
Industry Leading ultra-long range communication with 11.5km
The Four-Faith LoRa module adopts a LoRa modulation technique, acquired through many years of wireless network experiences to achieve a maximum transmission distance of 11.5 km. Perfectly solving the problematic environment of small amounts of data transmission over long distances, providing an ideal solution to all industries wireless networking needs.

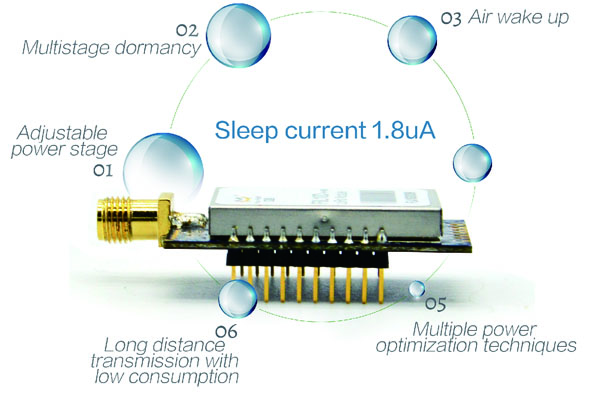

Low Power Consumption, Multi-Stage Sleep Mode <1.8uA
The two biggest problems to wireless communications is transmission distance and power consumption. Through several rounds of hardware engineering improvements and software optimizations, the Four-Faith LoRa module requires only 1.8 uA of current while dormant. Combining multi-level adjustable transmitting power, multi-level sleep modes, over the air wake up and other power optimizing techniques, the module is able to operate under ultra low power consumption while transmitting data over a long distance, a clear advantage over battery-powered applications.
Excellent Anti-Interference Features
Using the forward error correction technology to increase redundant information during transmission, any errors are corrected immediately upon arriving at the receiving end. Combine this with the Four-Faith channel conflict detection optimization technique to solve the problem of node data and packet loss to greatly improve the link robustness.
Module Supports Over-the-Air Updates
The Four-Faith LoRa modules support over-the-air updates along with remote maintenance, so technical personnel need not be on site to perform these tasks, significantly reducing labour costs and improving management efficiency.
Ultra-High Receiver Sensitivity
Modulation techniques created a unique spectrum widening process, allowing the receiver sensitivity to reach -148dBm. This makes it suitable for use in environments where stable long-distance data transmission is a top priority.
Large Network Capacity, Flexible Networking, and Low Cost
The LoRa network can connect and link tens of thousands of nodes, according to the needs of the project the number can be changed accordingly. With good network scalability, low cost and no data charges, the overall operating costs are lower which is an evident advantage for large-scale projects.

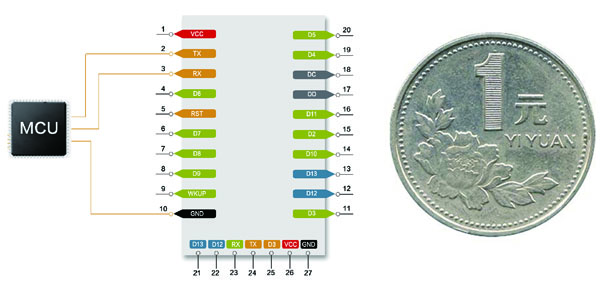

Easy to Embed and Develop
The Four-Faith LoRa module is only the size of a one Yuan coin, with a very small volume but providing a variety of forms of antenna connection, creating flexibility to embed it on a range of devices. Four-Faith has developed a complex low-level LoRa protocol; the customer only needs the serial port to transmit application data.
Specification
LoRa Module Parameters Selection Table
Product Model | F8L10D-E | F8L10D-N | F8L10S-N |
System Configuration | |||
Communication Standards and Frequency Bands | 410MHz - 441MHz,1000KHz Step Forward, Recommended 433±5MHz, Factory Default 433.0 | 410MHz - 441MHz,1000KHz Step Forward, Recommended 433±5MHz, Factory Default 433.0 | 410MHz - 441MHz,1000KHz Step Forward, Recommended 433±5MHz, Factory Default 433.0 |
Indoors/Urban Transmission Distance | 2km | 1km | 1km |
Outdoor/Open Field Transmission Distance | 11.5km | 3.5km | 3.5km |
Transmission Power | 1W | 100 mW | 100 mW |
Communication Theory Bandwidth | 6 Selection Levels(0.3、0.6、1.0、1.8、3.1、5.5Kbps) | 6 Selection Levels(0.3、0.6、1.0、1.8、3.1、5.5Kbps) | 6 Selection Levels(0.3、0.6、1.0、1.8、3.1、5.5Kbps) |
Sensitivity | -140Bm | -140Bm | -140Bm |
Channel | 32 | 32 | 32 |
Maximum Serial Data | 4K Bytes | 4K Bytes | 128 Bytes |
Receiving Data Current Use | <22mA@5VDC | <22mA@3.3VDC | <19mA@3.3VDC |
Sending Data Current Use | 180~200mA@ 5VDC(Maximum Pulse Current ≤400mA ) | 127~129mA@3.3VDC(Maximum Pulse Current ≤130mA ) | 115~125mA@3.3VDC(Maximum Pulse Current ≤130mA ) |
Timed Wake Up Current Use | <3.0uA@5VDC | <3.0uA@3.3VDC | <3.0uA@3.3VDC |
Deep Sleep Current Use | <2.0uA@5VDC | <2.0uA@3.3VDC | <2.0uA@3.3VDC |
LoRa Specification
Item | Content |
Communication Protocol and Band | 410MHz - 441MHz step 1000KHz Recommend 433±5MHz Default 433.0MHz |
Indoor/Urban Range | F8L10D-E 2000m F8L10D-N 1000m |
Outdoor/RF Line-of-Sight Range | F8L10D-E 9000m F8L10D-N 3500m |
Transmit Power | F8L10D-E:30dBm(1W) F8L10D-N:20dBm(100mW) |
Receiver Sensitivity | -140dBm |
RF Data Rate | 6 level, 0.3、0.6、1.0、1.8、3.1、5.5Kbps |
Channels | 32 |
Max Serial Buffer Size | 4K Bytes |
Interface Type
Item | Content |
UART | Data bits: 8 Stop bits: 1, 2 Checksum: none,odd,even Baud rate: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400,57600, 115200 bps |
Antenna connector | SMA female / U.FL RF connector, the characteristic impedance of 50 ohms |
Package | Support 2.54mm*7pin spacing stamp hole for SMT and 2*2.0mm*10pin spacing through-hole pins simultaneous |
Note: There may be different components and interfaces in different model,please in kind prevail. |
Power supply
Item | Content |
Recommended Power | F8L10D-N:DC 3.3V/0.5A F8L10D-E:DC 5V/1A |
Power Range | DC 3.3~5V |
Note: F8L10D-E power supply voltage is less than 4V output power will be reduced, but little impact on the reception performance. |
Power Consumption
Item | Content | |
F8L10D-N | RX Mode | <22mA@3.3VDC |
TX Mode | 127~129mA@3.3VDC(Maximum pulse current≤130mA ) | |
Timing wake up | <3.0uA@3.3VDC | |
Deep Sleep | <2.0uA@3.3VDC | |
F8L10D-E | RX Mode | <22mA@5VDC |
TX Mode | 180~200mA@ 5VDC(Maximum pulse current≤400mA ) | |
Timing wake up | <3.0uA@5VDC | |
Deep Sleep | <2.0uA@5VDC |
Physical Characteristics
Item | Content | |
F8L10D-N | Dimensions | 24.4x37.5x4.2 mm(Without antenna and connector) |
Weight | 5.0g | |
F8L10D-E | Dimensions | 24.4x45.0x4.2 mm(Without antenna and connector) |
Weight | 8.0g |
Environmental Limits
Item | Content |
Operating Temperature | -40~+85ºC(-40~+185℉) |
Storage Temperature | -40~+125ºC (-40~+257℉) |
Operating Humidity | 95%(unfreezing) |
