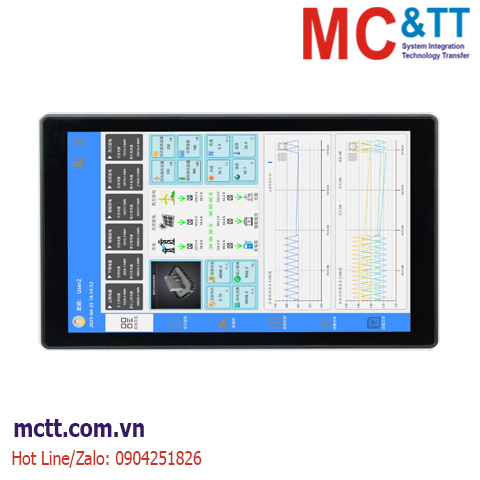

Miễn phí vận chuyển với đơn hàng từ 10.000.000đMàn hình cảm ứng HMI 10.1 inch Kinco G2100HE-LX (2 COM, 1 USB Host, 1 Ethernet)
Tính năng
Thông số kỹ thuật
|
Performance specification |
|
|
Display size |
10.1" TFT |
| Display area | 135.36(H)×216.58(V) |
|
Resolution |
1280*800pixel |
|
Display color |
16.77M color |
| Visual angle | 85/85/85/85(L/R/U/D) |
| Contrast ratio | 800:1 |
|
Backlight |
LED |
|
Brightness |
350cd/m2 |
|
Backlight life |
More than 30000 hours |
|
Touch Panel |
Reinforced glass capacitive touch panel |
|
CPU |
Quad-core ARM 1.5GHz |
|
Memory |
4GB eMMC+512MB RAM |
|
RTC |
Built-in |
|
Extensible memory |
1 USB Host |
|
Printer port |
USB Host/ Serial port |
|
Ethernet |
LAN0:10/100 Mbps |
|
Program download |
USB Slave(Type-C)/U disk/Ethernet port |
| Network access | Ethernet |
|
COM port |
COM0:RS232/RS485/RS422;COM2:RS232 |
|
Electrical specification |
|
|
Input power supply |
DC18V～DC28V |
|
Rated power |
7W @24V DC |
| Allowable loss of power |
<3ms |
|
Insulation resistance |
Over 50MΩ@500V DC |
|
Hi-pot test |
500V AC 1 minute |
|
Structure specification |
|
| PCB coating | None |
|
Shell material |
Metal |
|
Dimensions(mm) |
249*159*32.5mm |
|
Panel cutout(mm) |
192*138 |
|
Installation |
Buckle installation or VESA bracket(75x75mm) |
|
Environment specification |
|
|
Operating temperature |
0～50℃ |
|
Operating humidity |
10～90% non-condensing |
|
Storage temperature |
-20～60℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10~500Hz, 30m/s², X,Y,Z direction/hour |
|
Cooling method |
Natural air cooling |
|
Certification |
|
|
Degree of protection |
Conforming to IP65 certification (4208-93) |
|
CE certification |
EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019 |
|
Software |
|
|
Configuration software |
Kinco DToolsPro |
Thông tin đặt hàng
10.1" 16.77 million true color, 1280*800 resolution, quad-core CPU, flash memory 4G, memory 512MB, 2 COM ports, standard 1 USB HOST, 1 network ports
Tài liệu
Datasheet
User Manual
Software
