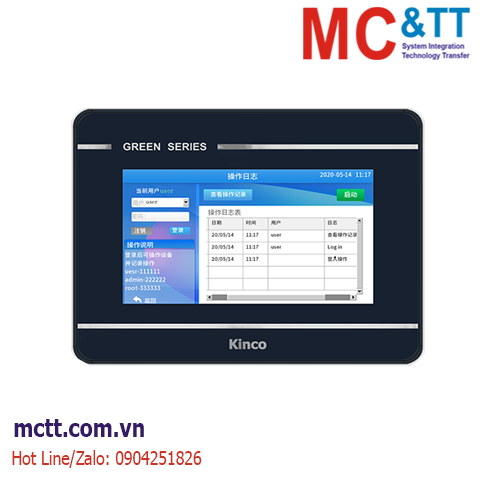

Màn hình cảm ứng HMI 4.3 inch Kinco GL2043HE (2 COM, 1 Ethernet)

Chia sẻ

Thương hiệu: Kinco Loại: 4.3 inch

Tình trạng: Còn hàng

Mã sản phẩm: GL2043HE

4.3" 16.77 million true color, 800*480 resolution, dual-core CPU, flash memory 4G, memory 256MB, 2 COM ports, standard 1 USB HOST, 1 network ports

CAM KẾT CỦA CHÚNG TÔI

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

FREESHIP Miễn phí vận chuyển

HSD: Không thời hạn

Sao chép

Màn hình cảm ứng HMI 4.3 inch Kinco GL2043HE (2 COM, 1 USB Host, 1 Ethernet)

Tính năng

4.3-inch 800*480 high-definition display with 16.77 million true colors
80/80/80/80 wide viewing angle display.
Dual-core CPU with 256MB memory and 4GB flash storage.
Single Ethernet port and dual serial ports and a USB Host, offering rich interfaces.
Based on the latest EdgeAccess 2.0 version, enjoy seamless loT connectivity.
Based on the latest Kinco Dtools Pro configuration software.

Thông số kỹ thuật

Performance specification
Display size	4.3" TFT
Display area	95.04(H)×54.71(V)
Resolution	800*480pixel
Display color	16.77M color
Visual angle	80/80/80/80(L/R/U/D)
Contrast ratio	1200:1
Backlight	LED
Brightness	350cd/m2
Backlight life	More than 30000 hours
Touch Panel	4 line precision resistance network (surface hardness 4H)
CPU	ARM Cortex-A7 duad-core 1GHz
Memory	4GB eMMC+256MB RAM
RTC	Built-in
Printer port	USB Host/ Serial port
Ethernet	LAN0:10/100 Mbps
Program download	USB Slave(Type-C)/U disk/Ethernet port
Network access	Ethernet
COM port	COM0:RS232/RS485/RS422;COM2:RS232
Electrical specification
Input power supply	DC18V～DC28V
Rated power	2W @24V DC
Allowable loss of power	<3ms
Insulation resistance	Over 50MΩ@500V DC
Hi-pot test	500V AC 1 minute
Structure specification
PCB coating	None
Shell material	Engineering plastic
Dimensions(mm)	13210233mm
Panel cutout(mm)	119*93
Weight	0.21KG
Environment specification
Operating temperature	0～50℃
Operating humidity	10～90% non-condensing
Storage temperature	-20～60℃
Storage humidity	10～90% non-condensing
Shockproof test	10~500Hz, 30m/s², X,Y,Z direction/hour
Cooling method	Natural air cooling
Certification
Degree of protection	Conforming to IP65 requirements
CE certification	EN61000-6-4:2007+A1:2011, EN61000-6-2:2005
Software
Configuration software	Kinco DToolsPro
