Bộ chuyển đổi Modbus TCP sang BACnet/IP ICP DAS GW-2439M CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Modbus TCP to BACnet/IP Gateway

THÔNG TIN SẢN PHẨM

Features

Read/Write BACnet objects via Modbus registers
Configurable BACnet/IP Client
Configurable Modbus TCP Server
Supports BACnet AI, AO, AV, BI, BO, BV, MSI, MSO, MSV Object Types
Supports Modbus discrete inputs, coils, input registers and holding registers
Supports up to 500 DI/O and 1000 AI/O modbus registers to convert remote BACnet objects' present value
Simple data translation allows you to manipulate data as it passes between protocol

Introduction

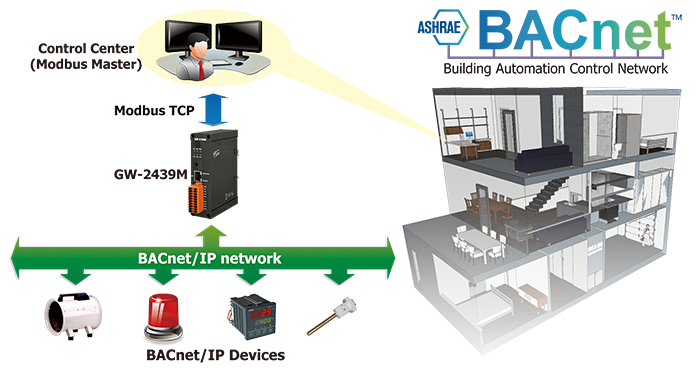

GW-2439M is a network gateway allowing Modbus TCP client devices to be accessed BACnet/IP network as a BACnet/IP client. The BACnet/IP protocol is used to relay and exchange information between building devices. GW-2439M contains a large number of BACnet objects (AI, AO, AV, BI, BO, BV, MSI, MSO, MSV) gives you flexibility in mapping Modbus TCP registers to any combination of BACnet objects. BACnet interoperability building blocks (DS-RP-A, DS-RPM-A, DS-WP-A, DS-WPM-A, DM-DDB-A, DM-DOB-A, DM-DCC-A, DM-RD-A) are Supported. All the data transfer is configurable using ICPDAS Utility.

Applications

Building Automation
Heating, Ventilating, and Air-conditioning Control
Lighting Control
Access Control
Fire Detection Systems

Specifications

LED Indicators
Status	Power (1), BACnet/IP Status (1), BACnet/IP Net(1), Modbus TCP TxD/RxD/Link (3) Ethernet LED Ethernet Status (RJ-45) (2)

Ethernet
Ports	1 x RJ-45, 10/100Base-TX
Protocol	Modbus TCP Server

BACnet/IP
Protocol	BACnet/IP Client (Supports up to 32 stations)
Objects	AI, AO, AV, BI, BO, BV, MSI, MSO, MSV(Supports up to 500 DI/O and 1000 AI/O modbus registers to convert remote BACnet objects' present value)
BIBBs	DS-RP-A, DS-RPM-A, DS-WP-A, DS-WPM-A, DM-DDB-A, DM-DOB-A, DM-DCC-A, DM-RD-A

Power
Input Range	+10 ~ +30 VDC
Consumption	5 W @ 24 VDC

Mechanical
Casing	Metal
Dimensions (mm)	33 x 120 x 116
Installation	DIN-Rail

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

GW-2439M CR

Modbus TCP to BACnet/IP Gateway (RoHS)
