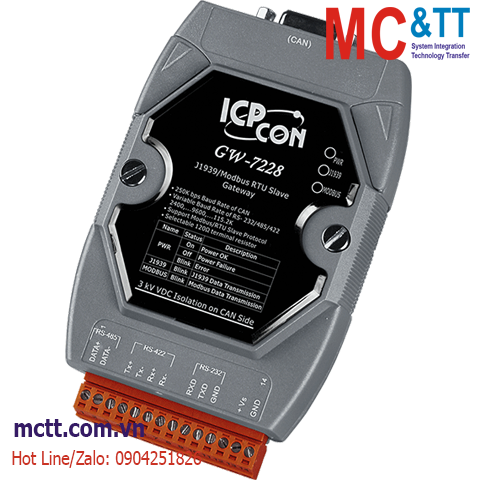

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ chuyển đổi J1939 sang Modbus RTU Slave ICP DAS GW-7228-G CR
Features
Introduction
The GW-7228 is a solution that provides a protocol conversion between J1939 and Modbus RTU. For J1939 network, the GW-7228 supports PDU1, PDU2, broadcast and destination specific type of J1939 messages. From the view of Modbus RTU network, the GW-7228 is a Modbus RTU slave to reply the request from Modbus RTU master. We provide Utility software for users to configure the parameters of J1939 / Modbus RTU of the GW-7228. The application fields can be Diesel power-train applications, In-Vehicle networks for trucks and buses, etc.

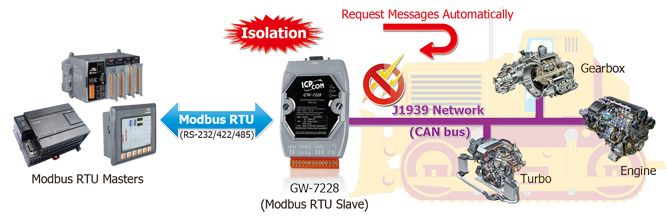

The following figure shows the application architecture for the GW-7228
Applications
Specifications
| LED Indicators | |
|---|---|
| Status | PWR / J1939 / MODBUS |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232(TXD, RXD, GND) 1 x RS-422(Tx+, Tx-, Rx+, Rx-) 1 x RS-485(D+, D-) |
| Baud Rate | 9600, 19200, 38400, 57600, 115200 |
| Protocol | Modbus RTU |
| J1939 | |
|---|---|
| Ports | 1 |
| Baud Rate | 250k |
| Isolation | 3000 VDC power protection on CAN side, 2500Vrms photo-couple isolation on CAN bus |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Pin Assignment | C.I.A. DS-102 (CAN_H=7, CAN_L=2) |
| Power | |
|---|---|
| Consumption | 1.5 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 108 x 72 x 35 (H x W x L) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| GW-7228-G CR | J1939/Modbus RTU Slave Gateway included CA-0910 cable (RoHS) |
