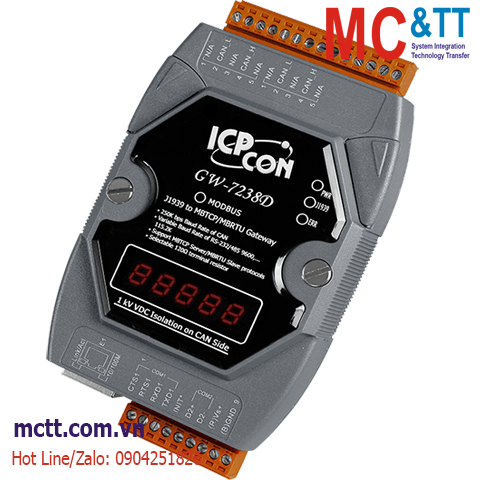

Bộ chuyển đổi J1939 sang Modbus TCP Server/RTU Slave ICP DAS GW-7238D-G CR

Bộ chuyển đổi J1939 sang Modbus TCP Server/RTU Slave ICP DAS GW-7238D-G CR

Features

• Built-in jumper to select 120 ohm terminal resistor
• Watchdog inside
• Transmission and reception of all types of J1939 messages, including PDU1, PDU2, broadcast and destination specific
• J1939 Transport Protocol for transmission and reception of large messages (9 - 1785 bytes)
• Supports BAM of Connection Management Message
• Network addresses management
• Supports Modbus TCP server / RTU slave protoco

Introduction

The GW-7238D is a gateway that provides conversion between J1939 and Modbus TCP/RTU protocol. For J1939 network, the GW-7238D supports PDU1, PDU2, broadcast and destination specific type of J1939 messages. For Modbus TCP/RTU network, the GW-7238D is a Modbus TCP server / RTU slave to reply the request from Modbus TCP client / RTU master. Utility software is provided for users to configure J1939 and Modbus TCP/RTU setting in the GW-7238D. The application fields can be diesel power-train applications, In-Vehicle networks for trucks and buses, etc.

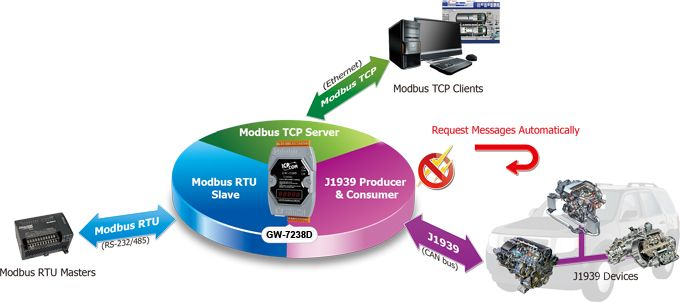

The following figure shows the application architecture for the GW-7238D

Applications

• Diesel power-train applications
• Diesel power-train applications
• In-Vehicle networks for trucks and buses
• Truck-Trailer connections
• On Board Diagnostics
• Vehicle Automation
