Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ lặp và cách ly CAN Bus ICP DAS I-7531-UT-G CR
Feature
Introduction

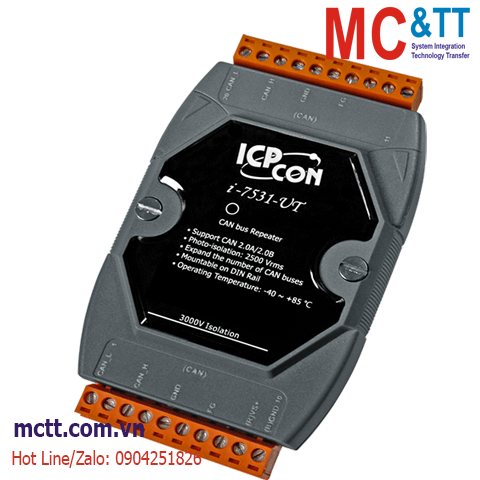

The I-7531-UT is an isolated CAN repeater that can be used to establish a physical coupling of two segments of a CAN bus system. This module is designed to isolate the noise and disturbance between the two CAN ports of the I-7531-UT. When the CAN signal is decayed because of the rough bus cable or noise, the I-7531-UT can recover the shape of the CAN signals to the original ones. Tree topologies can be implemented as well as long drop lines using the I-7531-UT. In order to use the I-7531-UT easily, the module can automatically adjust the baud rate by itself to match the CAN network. Users just connect the I-7531-UT with the CAN buses, check the terminal resistor and power it on, subsequently the I-7531-UT enable to work normally. For detail information , please refer to the user manual of I-7531-UT.
Application
• Control System
• Building Automation
• Factory Automation
• Distributed data acquisition
Specifications
| Fiber | |
|---|---|
| Propagation Delay | 200 ns |
| CAN | |
|---|---|
| Ports | 2 |
| Baud Rate | 5 k ~ 800 k bps |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Time Delay | 200ns |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 2 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 72 x 118 x 33 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -40 ~ +85 °C |
| Storage Temperature | -45 ~ +90 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| I-7531-UT-G CR | CAN Bus Isolated Repeater with -40 to 85°C operating temperature (RoHS) |
