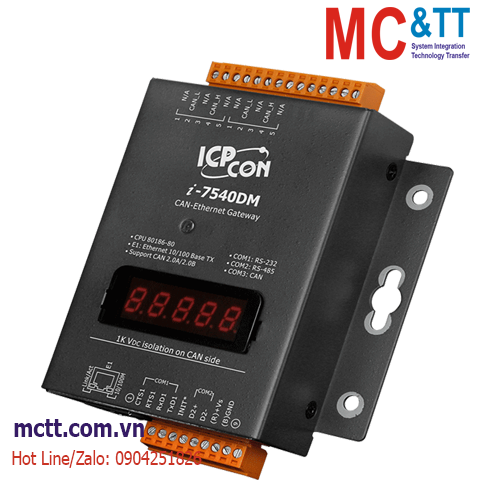

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ chuyển đổi CAN sang Ethernet ICP DAS I-7540DM CR
Feature
Introduction
The I-7540D series are CAN to Ethernet converters, and are usually applied as an Ethernet to CAN/RS-232/485 Device Server. They support socket access functions and virtual COM port technology which helps users to get the CAN, RS-232, RS-485 data via virtual COM port. The I-7540D series also provide transparent mode, which enables CAN networks to be coupled together over the Internet/Ethernet, whereby remote monitoring and control is possible. By the features of tiny operating system, protocol independence, small casing and flexibility, it is able to widely fit various RS-232, RS-485 and CAN applications, which may be based on private RS-232 protocol, private CAN protocol, Modbus protocol, CANopen protocol, DeviceNet protocol or J1939 protocol.
The TCP Server function is used to implement communications between CAN devices and a TCP Client device. The TCP Client device can use ASCII commands base on the CAN format, in order to access the I-7540DM module. Then I-7540DM module will translate these ASCII commands into CAN format messages and send them to the CAN networks. Similarly, when a CAN format message is received from the CAN network, the I-7540DM will translates the message into ASCII commands and sent it to the connected TCP client device.
The pair connection application of I-7540DM module is used to implement communication between two ends of CAN network via Ethernet. It is implemented via TCP or UDP protocol for CAN Network #1 can communicate with CAN Network #2.
Specifications
| LED Indicators | |
|---|---|
| Status | 1 x Power |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 1 x RS-485 (self-turner ASIC inside) |
| Baud Rate | 110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Parity | None, Even, Odd |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100Base-T(X) |
| CAN | |
|---|---|
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 1000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Filter | Yes |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 2.5 W |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 102 x 125 x 28 (W x L x H) |
| Installation | Wall Mount |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| I-7540DM CR | CAN to Ethernet Gateway with one CAN bus, one RS-232, one RS-485 and one Ethernet (Metal Case) (RoHS) |
