Bộ chuyển đổi USB sang Hart ICP DAS I-7567 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

USB to HART converter

Gọi +84 904251826 để được trợ giúp

Bộ chuyển đổi USB sang Hart ICP DAS I-7567 CR

Features

  • Support HART Short/Long frame
  • Support HART Burst mode
  • Support point-to-point or multi-drop HART mode
  • Support connecting up to 15 HART slave devices
  • Allow two HART masters
  • Provide utility tool for module configuration and HART communication
  • No external power supply (powered by USB)
  • Support firmware update via USB
  • 4KV ESD Protection
  • Selectable 250Ω load resistor
  • Support HART OPC Server provided by HART COMMUNICATION FOUDATION

Introduction

I-7567 is a USB to HART converter and can be used as a HART master with HC_Tool utility or a HART slave with HDS utility.

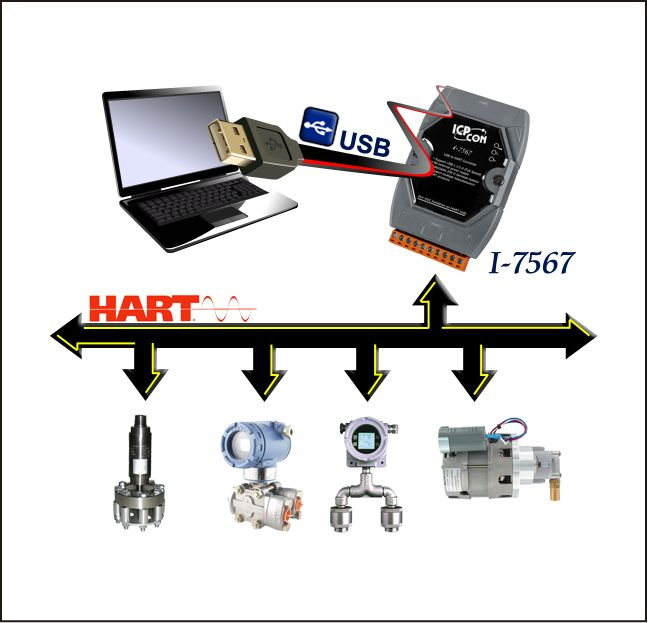

(1) I-7567 as HART Master :

It allows users to access the HART slave via virtual COM-port of PC. When connecting I-7567 to PC, PC will load the relevant device driver automatically (hot plug & play). Therefore, users can make data collection and processing of HART network easier and quicker by applying I-7567. In addition, by using the I-7567 utility, users can configure module and test HART communication easily.

(2) I-7567 as HART Slave :

HART Device Simulator (called HDS) is the HART device simulation software developed by ICP DAS. It can be used to simulate multi HART slave devices simultaneously to exchange data with HART master device by using ICP DAS HART converter (like: I-7567 / I-7570 / I-7547) connected to any COM port (USB / 232 / 485 / Ethernet). By this way, users can develop or verify the HART master program without any HART slave device.

HDS (HART Device Simulator)

Applications

  • Current Measuring
  • Petrochemical Industry Application
  • Environment Monitoring
  • Tunnel Monitoring
  • Monitor system
  • Building Monitoring

FDT (Field Device Tool) standardizes the communication and configuration interface between all field devices and host systems. FDT provides a common environment for accessing the devices' most sophisticated features. Therefore, by using ICPDAS HART converters, I-7567, I-7570 or I-7547, supporting FDT, users can easily and quickly construct HART online control and configuration system.

Specifications

Software
Driver Windows 2000 / XP / Vista / 7 (32/64 bit)
LED Indicators
Status PWR : Power Indicator
Tx : Received Data from USB Indicator
Rx : Received Data from HART Indicator
USB
Specification USB 1.1 and 2.0 standard
Connector USB Type B
Virtual COM Parameter 1200 bps, O(odd parity), 8(data bit), 1(stop bit)
HART
Ports 1
Terminal Resistor Selectable 250 Ω terminal resistor
Isolation 3000 VDC
Power
Input Range By USB Interface
Consumption Maximum : 1.5W
Mechanical
Dimensions (mm) 108 x 72 x 35 (H x W x D)
Installation DIN-Rail or Wall Mounting
Environment
Operating Temperature -25 ~ +75 °C (-13 to 167 ℉)
Storage Temperature -30 ~ +75 °C (-22 to 167 ℉)
Humidity 5% ~ 95%, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7567     CR  USB To HART Converter (Gray Cover) (RoHS)
