Bộ chuyển đổi RS-232/422/485 sang Hart ICP DAS I-7570 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Serial to HART converter

THÔNG TIN SẢN PHẨM

Features

Support HART Short / Long frame
Support HART Burst mode
Support point-to-point or multi-drop HART mode
Support connecting up to 15 HART slave devices
Allow two HART masters
Provide utility tool for module configuration and HART communication
4KV ESD Protection
Built-in Watchdog
Selectable 250Ω load resistor
Support HART OPC Server provided by HART COMMUNICATION FOUDATION

Introduction

I-7570 is a Serial to HART converter and can be used as a HART master with HC_Tool utility or a HART slave with HDS utility.

(1) I-7570 as HART Master :

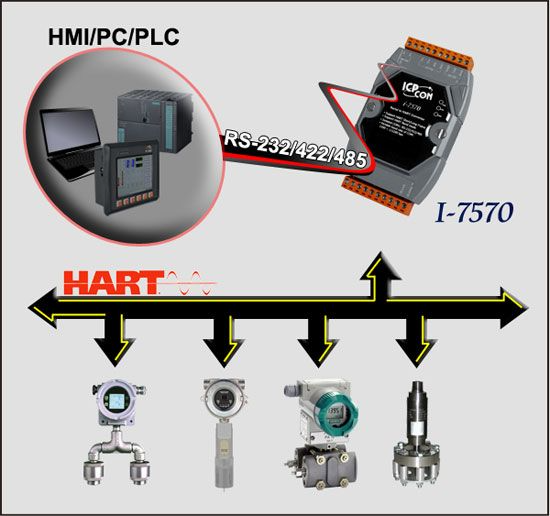

It allows users to access the HART slave by using RS-232 / RS-422 / RS-485. These HART slave devices may be a transmitter, actuator, current output device and so forth. In addition, by using the I-7570 utility tool, users can configure module and test HART communication easily and quickly.

(2) I-7570 as HART Slave :

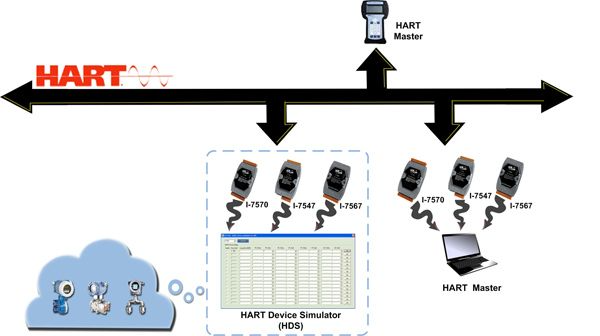

HART Device Simulator (called HDS) is the HART device simulation software developed by ICP DAS. It can be used to simulate multi HART slave devices simultaneously to exchange data with HART master device by using ICP DAS HART converter (like: I-7567 / I-7570 / I-7547) connected to any COM port (USB / 232 / 485 / Ethernet). By this way, users can develop or verify the HART master program without any HART slave device.

HDS (HART Device Simulator)

Applications

Current Measuring
Petrochemical Industry Application
Environment Monitoring
Tunnel Monitoring
Monitor system
Building Monitoring

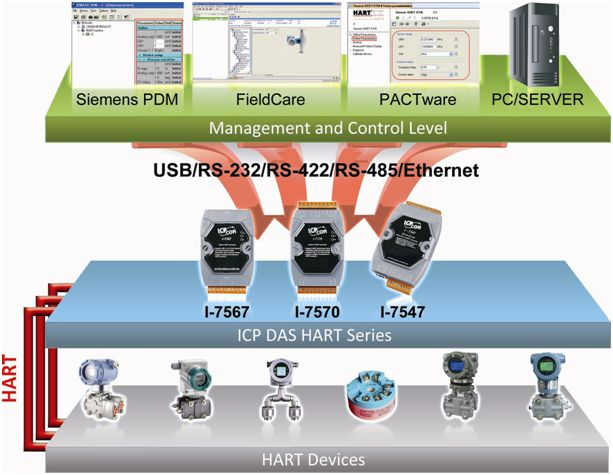

FDT (Field Device Tool) standardizes the communication and configuration interface between all field devices and host systems. FDT provides a common environment for accessing the devices' most sophisticated features. Therefore, by using ICPDAS HART converters, I-7567, I-7570 or I-7547, supporting FDT, users can easily and quickly construct HART online control and configuration system.

Specifications

LED Indicators
Status	PWR / TxD / RxD

COM Ports
Ports	RS-232(Tx / Rx / GND) / RS-422 / RS-485 9-pin screwed terminal block
Baud Rate	1200 bps (For FW_v1.1) 1200 ~ 115200bps (For FW_v1.1 / HW_v1.2)
Data Format	O(odd parity), 8(data bit), 1(stop bit) (For FW_v1.1) N/O/E(parity), 8(data bit), 1/2(stop bit) (For FW_v1.1 / HW_v1.2)

HART
Ports	1
Protocol	2-pin screwed terminal block

Power
Reverse Polarity Protection	Power reverse polarity protection, Over-voltage brown-out protection
Input Range	Unregulated +10 ~ +30 VDC
Consumption	1 W

Mechanical
Dimensions (mm)	121 x 72 x 35 (H x W x D)
Installation	DIN-Rail or Wall Mounting

Environment
Operating Temperature	-25 ~ +75 °C (-13 to 167 ℉)
Storage Temperature	-30 ~ +85 °C (-22 to 185 ℉)
Humidity	5% ~ 95%, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7570 CR

Serial To HART Converter (Gray Cover) (RoHS)
