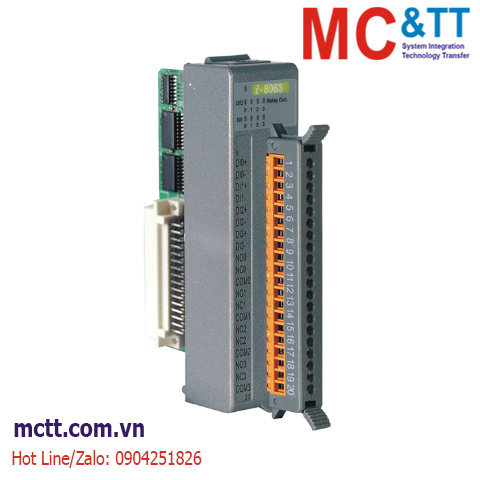

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 4 kênh đầu ra Relay + 4 kênh DI ICP DAS I-8063-G CR
I-8063-G CR đã dừng sản xuất và được thay thế bằng I-8063W-G CR
Feature
• 4-channel Digital Input and 4-channel Relay Output
• Form C Power Relay Output
• Sink-type and Source-type Digital Input Channels
• ±4 kV ESD Protection
• 3750 VDC Intra-module Isolation
Introduction
The I-8063 module provides 4 Isolated Digital Input channels and 4 Form C Relay Output channels. In addition, either sink-type or source-type Digital Input can be selected via the wire connections. The I-8063 includes 8 LED indicators that can be used to monitor the status of the Digital Input and Relay Output. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance the noise protection capabilities of the module in harsh industrial environments.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 8 x I/O |
| Digital Input | |
|---|---|
| Channels | 4 Differential |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 ~ +30 VAC |
| OFF Voltage Level | +4 VAC Max. |
| Input Impedance | 3 KΩ, 0.5 W |
| Relay Output | |
|---|---|
| Channels | 4 (Form C) |
| Type | Power Relay |
| Contact Rating | 5A, 250 VAC / 30 VDC |
| Operate Time | 10 ms Max. |
| Release Time | 5 ms Max. |
| Electrical Endurance | 100,000 Min. |
| Mechanical Endurance | 20,000,000 Min. |
| Power | |
|---|---|
| Consumption | 2 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 116 x 88 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| I-8063-G CR | 4-ch Isolated DI (Wet) and 4-ch Form C Power Relay Module (Gray Cover) (RoHS) |
