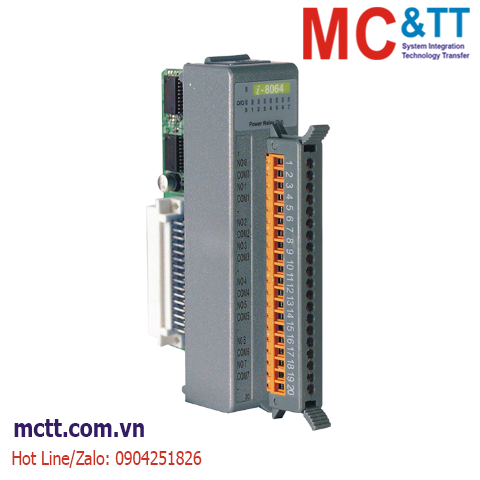

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 8 kênh đầu ra Relay ICP DAS I-8064-G CR
I-8064-G CR đã dừng sản xuất và được thay thế bằng I-8064W-G CR
Feature
• 8-channel Power Relay Output
• Form A Power Relay Output
• 500 VDC Intra-module Isolation
Introduction
The I-8064 module provides 8 Form A Relay Output channels, and is an ideal solution for highpower applications. The I-8064 includes 8 LED indicators that can be used to monitor the status of the Relay Output channels, 4 kV ESD protection and 500 VDC intra-module isolation are also provided to enhance the noise protection capabilities of the module in harsh industrial environments.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 500 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 8 x I/O |
| Relay Output | |
|---|---|
| Channels | 8 (Form A, Normal Open) |
| Type | Power Relay |
| Contact Rating | 5 A @ 250 VAC (47 ~ 63 Hz); 5 A @ 30 VDC |
| Operate Time | 6 ms Max. |
| Release Time | 3 ms Max. |
| Electrical Endurance | 100,000 Min. Resistive |
| Mechanical Endurance | 2 x 100,000,000 Min. |
| Power | |
|---|---|
| Consumption | 1.1 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 116 x 88 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| I-8064-G CR | 8-ch Form A Power Relay Module (Gray Cover) (RoHS) |
