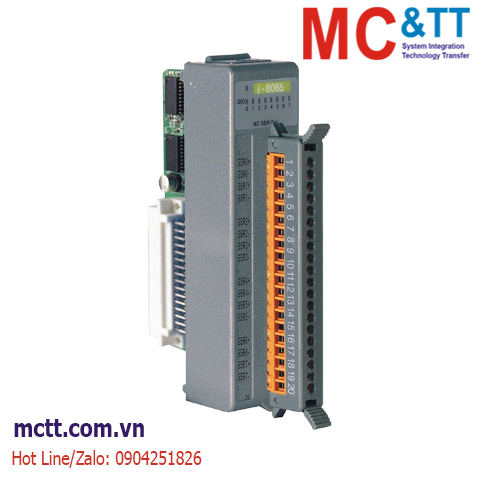

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 8 kênh đầu ra AC SSR ICP DAS I-8065-G CR
I-8065-G CR đã dừng sản xuất
Feature
• 8-channel AC SSR Output
• Form A AC Solid State Relay Output
• ±4 kV ESD Protection
Introduction
The I-8065 module provides 8 DC Solid State Relay (SSR) Output channels. In comparison to electromechanical relays, SSR technology provides a faster response time and greater electrical endurance. The integration of DC SSR technology also eliminates the potential for arcing, bouncing, and switching noise.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 500 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 8 x I/O |
| Relay Output | |
|---|---|
| Channels | 8 (Form A, Normal Open) |
| Type | AC SSR |
| Contact Rating | 1 a @ 280 VAC |
| Operate Time | 1 ms |
| Release Time | 1/2 Cycle + 1 ms |
| Power | |
|---|---|
| Consumption | 0.9 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 116 x 88 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| I-8065-G CR | 8-ch Form A AC SSR Output Module (Gray Cover) (RoHS) |
