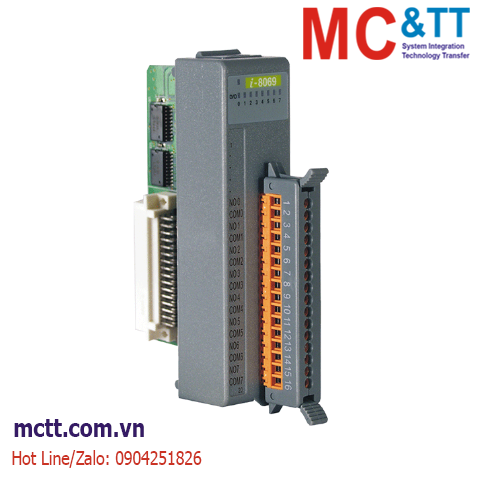

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 8 kênh đầu ra Form A PhotoMOS Relay ICP DAS I-8069-G CR
I-8069-G CR đã dừng sản xuất và được thay thế bằng I-8069W-G CR
Feature
• 8 PhotoMos Relay Outputs
• 4 kV ESD Protection
• No Arcing, No Bounce, and No Switching Noise
• Optical Isolation
Introduction
Both the I-8069 features eight Form A PhotoMOS relay output channels. In comparison to electromechanical relays, the PhotoMOS relays provide a faster response time, greater electrical endurance, higher vibration and shock resistance, and both the I-8069 include eight LED indicators that are used to display channel status as well as providing 4 kV ESD protection.
Application
• All Types of On/Off Control
• Industrial Automation
• Industrial Machinery
• Building Automation
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 5000 Vrms |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 8 x I/O |
| Digital Output | |
|---|---|
| Load Voltage | 60 VDC Max. @ DC/AC |
| Load Current | 60 V / 0.55 A |
| Relay Output | |
|---|---|
| Channels | 8 (Form A) |
| Type | PhotoMOS Relay |
| Power | |
|---|---|
| Consumption | 0.6 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 116 x 88 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| I-8069-G CR | 8-ch Form A PhotoMOS Relay Module (Gray Cover) (RoHS) |
