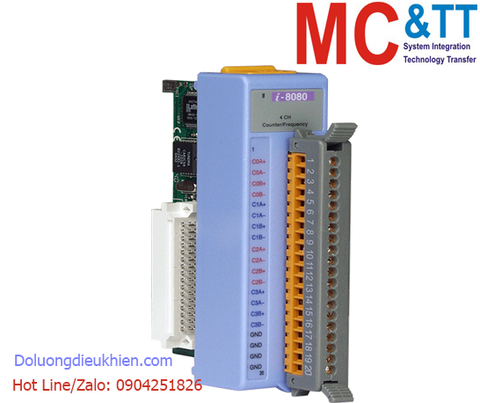

Miễn phí vận chuyển với đơn hàng từ 10.000.000đI-8080 CR: Module 4/8 kênh đầu vào bộ đếm/tần số (Counter/Frequency/Encoder)
Features
• Support 8 Up Counter.
• Support 8 Frequency
• Support 4 Up/Down Counter.
• Support 4 Dir/Pulse Counter
• Support isolated and non-isolated input signals.
• Power LED indicators.
Introduction
I-8080 is a high speed Counter/Frequency/Encoder I/O with "Up Counter", "Frequency", "Up/Down Counter" and "Dir/Pulse Counter" mode.
Specification
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| Counter/Frequency/Encoder Input | |
|---|---|
| Type | Isolated Input, TTL Input |
| ON Voltage Level | Isolated Input: +4.5 VDC ~ +10 VDC |
| OFF Voltage Level | Isolated Input: +1 VDC Max. |
| TTL, ON Voltage Level | +2 VDC ~ +5 VDC |
| TTL, OFF Voltage Level | 0 VDC ~ +0.8 VDC |
| Frequency Accuracy | 10~450K Hz (Frequency mode) 450K Hz max (Counter mode) |
| Counter Mode | 4 Channel Pulse/Dir Counter 4 Channel Up/Down Counter 8 Channel Frequency 8 Channel Up Counter |
| Digital Noise Filter | 1 ~ 32767 µsec |
| Power | |
|---|---|
| Consumption | 1 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 116 x 88 (W x L x H) |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Data sheet
Documents
Ordering information
| I-8080 CR | 4/8-ch Counter/Frequency/Encoder Input Module (Blue Cover) (RoHS) |
