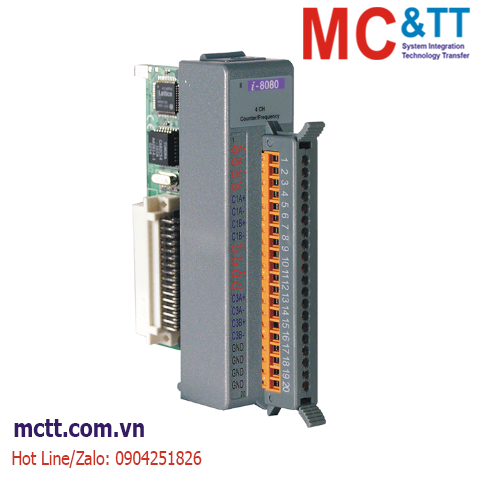

Module 4/8 kênh Counter/Frequency/Encoder ICP DAS I-8080-G CR
I-8080-G CR đã dừng sản xuất và được thay thế bằng I-8084W-G CR
Feature
• Support 8 Up Counter.
• Support 8 Frequency
• Support 4 Up/Down Counter.
• Support 4 Dir/Pulse Counter
• Support isolated and non-isolated input signals.
• Power LED indicators.
Introduction
I-8080 is a high speed Counter/Frequency/Encoder I/O with "Up Counter", "Frequency", "Up/Down Counter" and "Dir/Pulse Counter" mode.
Application
Counter measurement, Frequency measurement and Encoder motion control.
Specifications
EMS Protection | |
---|---|
ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
LED Indicators | |
---|---|
Status | 1 x Power and Communication |
Counter/Frequency/Encoder Input | |
---|---|
Channels | 4-channel Up/Down Counter (CW/CCW) 4-channel Dir/Pulse Counter (Bi-direction) 4-channel A/B Phase (Quadrature Counting) 8-channel Up Counter 8-channel Frequency |
Type | Isolated Input, TTL Input |
ON Voltage Level | Isolated Input: +4.5 VDC ~ +30 VDC TTL: +2 VDC ~ +5 VDC |
OFF Voltage Level | Isolated Input: +1 VDC Max. TTL: 0 VDC ~ +0.8 VDC |
Frequency Accuracy | 10~450K Hz (Frequency mode) 450K Hz max (Counter mode) |
Low Pass Filter | 1 ~ 32767 µsec |
Power | |
---|---|
Consumption | 1 W Max. |
Mechanical | |
---|---|
Dimensions (mm) | 31 x 116 x 88 (W x L x H) |
Environment | |
---|---|
Operating Temperature | -25 ~ +75 °C |
Storage Temperature | -40 ~ +85 °C |
Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
I-8080-G CR | 4/8-ch Counter/Frequency/Encoder Input Module (Gray Cover) (RoHS) |
