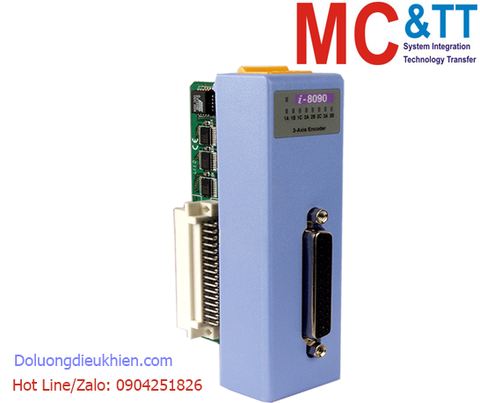

Miễn phí vận chuyển với đơn hàng từ 10.000.000đI-8090 CR: Module 3 trục đầu vào bộ đếm (Encoder)
Features
• 3-axis, 16-bit Encoder Counter
• 32-bit Encoder Counter by Software
• Maximum Counting Rate: 1M pulse/sec
• Differential Input A+, A-, B+, B-, C+, C-
• Quadrant Counting Mode, CW/CCW Counting Mode, Pulse/Dir Counting Mode
• 2500 VDC Optical Isolation
Introduction
I-8090 is a 3-axis encoder counter board on I-8000 platform. Its each axis can be independently configured as one of Quadrant, Pulse/Direction or CW/CCW input mode. The maximum input rate for Quadrant mode is 1 MHz. The application of I-8090 board is position/distance measurement, velocity measurement, feedback for motor control, handwheel input and so on.
Specification
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 8 x I/O |
| Encoder Input | |
|---|---|
| Resolution | 16-bit (32-bit encoder counter by software) |
| No. of Axes | 3-axis |
| Mode | 1. Quadrant Counting 2. CW/CCW 3. Pulse/Dir |
| Counting Rate | 1 MHz |
| Power | |
|---|---|
| Consumption | 3.4 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 114 x 66 (W x L x H) |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Data sheet
Documents
Ordering information
| I-8090 CR | 3-axis Encoder Input Module (Blue Cover) (RoHS) (Only suitable for I-8000 and ISaGRAF PAC) |
