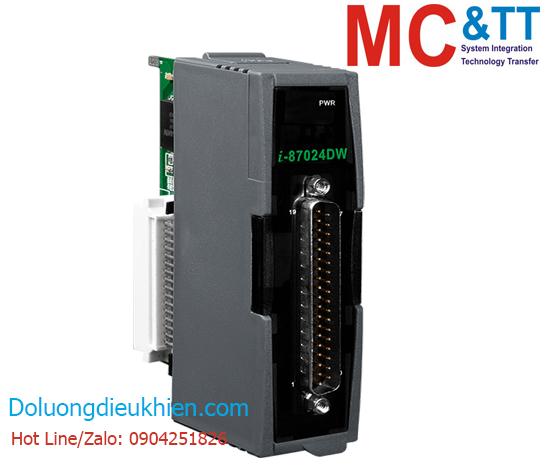

I-87024DW-G CR 4-ch AO Module with DB37 Connector (RoHS)

THÔNG TIN SẢN PHẨM

Introduction

The I-87024DW is a serial interface and 4-channel analog output module. The programmable analog outputs are 14-bit resolution and support an output range of 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, 0 ~ +20 mA, or +4 ~ +20 mA.

Features

• 4-channel Analog Output
• D-Sub 37-Pin Connector
• 4 kV ESD Protection
• Dual Watchdog
• Configurable Power-on Value
• Configurable Safe Value
• 3000 VDC Intra-module Isolation, Field-to-Logic
• Open Daughter Board Detection
• RF Immunity
• RoHS Compliant
• Wide Operating Temperature Range: -25 to +75°C

Specification

CPU Module
Watchdog Timer	Yes, Module (1.6 Seconds), Communication (Programmable)

Isolation
Intra-module Isolation	3000 VDC

EMS Protection
ESD (IEC 61000-4-2)	± 4 kV Contact for Each Terminal ±8 kV Air for Random Point
RS Immunity (IEC 61000-4-3)	3 V/m, 80 MHz ~ 1 GHz

LED Indicators
Status	1 x Power and Communication 16 x I/O

Analog Output
Channels	4 Sink
Type	Voltage Current
Range	0 ~ +5 VDC, ±5 VDC, 0 ~ +10 VDC, ±10 VDC, 0 ~ +20 mA, +4 ~ +20 mA
Resolution	14-bit
Accuracy	±0.1% of FSR
Zero Drift	Voltage: ±30 μV/°C Current: ±0.2 μA/°C
Span Drift	±20 ppm/°C
Short Circuit Protection	Yes
DA Output Response Time	10 ms per channel
Programmable Output Slope	Voltage: 0.0625 ~ 1024 V/Second Current: 0.125 ~ 2048 mA/Second
Open Wire Detection	Yes
Current Load Resistance	External +24 VDC @ 1050 Ω
Power on Value	Yes
Safe Value	Yes
Open Daughter Board Detection	Yes

COM Ports
Ports	1 x RS-485
Baud Rate	1200 ~ 115200 bps
Data Format	N, 8, 1
Protocol	DCON

Power
Consumption	1.3 W Typical 3.1 W Max.

Mechanical
Dimensions (mm)	30 x 85 x 115 (W x L x H)

Environmental
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +85 °C
Humidity	10 ~ 95% RH, Non-condensing
