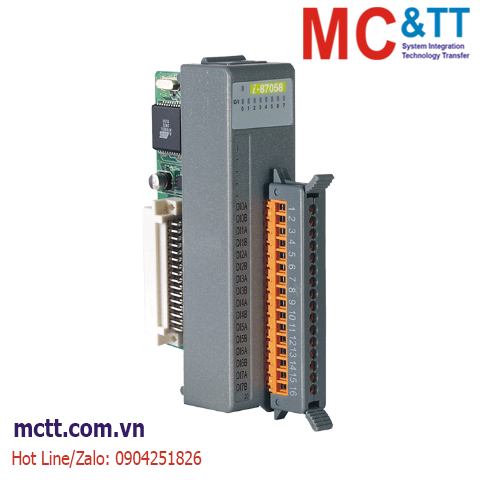

Module 8 kênh đầu vào AC DI ICP DAS I-87058-G CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

8-ch Isolated DI (80~250 VAC/VDC) Module

THÔNG TIN SẢN PHẨM

I-87058-G CR đã dừng sản xuất và được thay thế bằng I-87058W-G CR

EOL Notification

Feature

• 8-channel AC/DC Digital Input
• Low Pass Filter
• Photocouple Isolation
• All Digital Channels Input can be used as Counter
• I/O LED Display
• ±4 kV ESD Protection
• 5000 Vrms Intra-module Isolation
• 2 kV Channel-to-Channel Isolation
• Overvoltage Protection

Introduction

The I-87058 is an 8-channel AC/DC digital input module with high voltage isolation. The ON voltage level for the module range can be between 80 ~ 250 VAC/VDC, and all DI channels are also able to be used as 16-bit counters. The I-87058 include 8 LED indicators that can be used monitor DI channel status. 4 kV ESD protection and 5000 Vrms intra-module isolation are standard.

Application

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

CPU Module
Watchdog Timer	Yes, Module (1.6 Seconds), Communication (Programmable)

Isolation
Intra-module Isolation	5000 Vrms

LED Indicators
Status	1 x Power and Communication 8 x I/O

Digital Input/Counter
Channels	8
Type	Wet Contact, Differential
ON Voltage Level	80 ~250 VAC 80 ~ 250 VDC
OFF Voltage Level	30 VAC/VDC Max.
Max. Counts	16-bit (65535)
Frequency	100 Hz
Min. Pulse Width	5 ms
Input Impedance	68 KΩ, 2 W
Overvoltage Protection	300 VAC/VDC Max.
Channel-to-Channel Isolation	Yes, 2 kV

COM Ports
Baud Rate	115200 bps
Data Format	N, 8, 1
Protocol	DCON

Power
Consumption	0.5 W Max.

Mechanical
Dimensions (mm)	31 x 116 x 88 (W x L x H)

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +75 °C
Humidity	5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-87058-G CR

8-ch Isolated DI (80~250 VAC/VDC) Module (Gray Cover) (RoHS)
