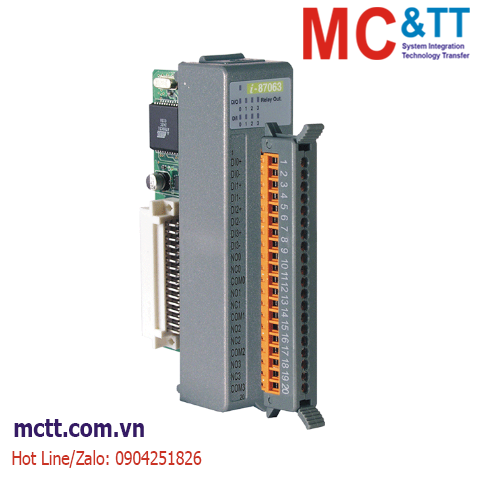

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 4 kênh đầu ra Relay + 4 kênh DI ICP DAS I-87063-G CR
I-87063-G CR đã dừng sản xuất và được thay thế bằng I-87063W-G CR
Feature
• 4-channel Digital Input and 4-channel Relay Output
• Form C Power Relay Output
• Sink- and Source-type Digital Input Channels
• Digital Input Channels can be used as 16-bit Counters
• Configurable Power-on Value
• Configurable Safe Value
• 4 kV ESD Protection
• 3750 VDC Intra-module Isolation
Introduction
The I-87063 module provides 4 isolated Digital Input channels and 4 Form C Relay Output channels. All Digital Input channels can be used as 16-bit counters. In addition, either sink- or source-type Digital Input can be selected via the wire connections. The I-87063 includes 8 LED indicators that can be used to monitor the status of the Digital Input and Relay Output, and options are available for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance the noise protection capabilities of the module in harsh industrial environments.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 Vrms |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 8 x I/O |
| Digital Input/Counter | |
|---|---|
| Channels | 4 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +3.5 VDC ~ +30 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Max. Counts | 16-bit (65535) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Input Impedance | 3 kΩ, 0.25 W |
| Relay Output | |
|---|---|
| Channels | 4 (Form C) |
| Type | Signal Relay |
| Contact Rating | Form C: 2 A @ 30 VDC (Resistive Load) 0.6 A @ 125 VAC (Resistive Load) |
| Operate Time | 10 ms (Max.) |
| Release Time | 5 ms (Max.) |
| Electrical Endurance | 1 × 10^5 ops. |
| Mechanical Endurance | 5 × 10^6 ops. |
| Power on Value | Yes |
| Safe Value | Yes |
| COM Ports | |
|---|---|
| Baud Rate | 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | DCON |
| Power | |
|---|---|
| Consumption | 1.0 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 116 x 88 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Download
Ordering Information
| I-87063-G CR | 4-ch Isolated DI (Wet) and 4-ch Form C Power Relay Module (Gray Cover) (RoHS) |
