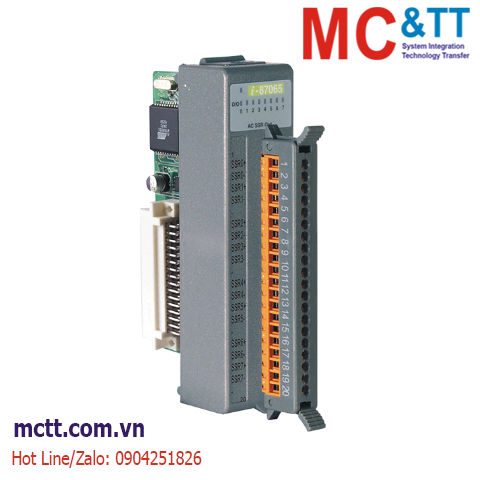

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 8 kênh đầu ra AC SSR ICP DAS I-87065-G CR
I-87065-G CR đã dừng sản xuất và được thay thế bằng I-87065W-G CR
Feature
• 8-channel AC SSR Output
• Form A AC Solid State Relay Output
• Fast Operating/Release Time
• No Arcing, Bouncing, or Switching Noise
• 3000 VDC Intra-module Isolation
• Configurable Power-on Value
• Configurable Safe Value
• Fast Response Time
• Unlimited Relay Lifetime
• 4 kV ESD Protection
Introduction
The I-87065 module provides 8 AC Solid State Relay (SSR) Output channels. In comparison to electromechanical relays, SSR technology provides a faster response time and greater electrical endurance. The integration of AC SSR technology also eliminates the potential for arcing, bouncing, or switching noise. The I-87065 includes 8 LED indicators that can be used to monitor the status of the SSR output, and options are available for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance the noise protection capabilities of the module in harsh industrial environments.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 8 x I/O |
| Relay Output | |
|---|---|
| Channels | 8 (Form A) |
| Type | Solid State Relay (AC) |
| Contact Rating | Operating Voltage Range: +24 ~ +265 VAC Max. Load Current: 1 A Leakage Current: 1.5 mA |
| Operate Time | 1/2 cycle + 1 ms (Min.) |
| Release Time | 1/2 cycle + 1 ms (Min.) |
| Electrical Endurance | Long Life, No Arcing, No Bounce, No Switching Noise |
| Power on Value | Yes |
| Safe Value | Yes |
| COM Ports | |
|---|---|
| Baud Rate | 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | DCON |
| Power | |
|---|---|
| Consumption | 0.7 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 116 x 88 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Download
Ordering Information
| I-87065-G CR | 8-ch AC-type SSR Relay Module (Gray Cover) (RoHS) |
