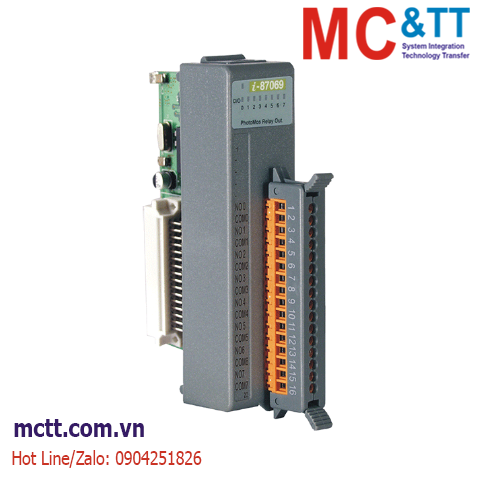

Module 8 kênh đầu ra Form A PhotoMOS Relay ICP DAS I-87069-G CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

8-ch PhotoMOS Relay Module (0.13A Rating Current)

THÔNG TIN SẢN PHẨM

I-87069-G CR đã dừng sản xuất và được thay thế bằng I-87069W-G CR

EOL Notification

Feature

• 8 PhotoMos Relay Outputs
• 4 kV ESD Protection
• No Arcing, No Bounce, and No Switching Noise
• Photocouple Isolation
• Embedded Dual Watchdog
• Configurable Power-on Value Settings
• Configurable Safe Value Settings

Introduction

I-87069 features eight Form A PhotoMOS relay output channels. In comparison to electromechanical relays, the PhotoMOS relays provide a faster response time, greater electrical endurance, higher vibration and shock resistance. There are also no arcing, no bounce, and no switching noise for the PhotoMOS relay. There are options for configuring power-on and safe digital output values, and both the I-87069 include eight LED indicators that are used to display channel status as well as providing 4 kV ESD protection.

Application

• All Types of On/Off Control
• Industrial Automation
• Industrial Machinery
• Building Automation
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems

Specifications

CPU Module
Watchdog Timer	Yes, Module (1.6 Seconds), Communication (Programmable)

Isolation
Intra-module Isolation	5000 Vrms

LED Indicators
Status	1 x Power and Communication 8 x I/O

Relay Output
Channels	8 (Form A)
Type	PhotoMOS Relay
Contact Rating	Operating Load Voltage Range: 350 V (AC peck or DC) Countinous Load Current: 0.13 A Peak Load Current: 0.4 A Output Off State Leakage Current: 1 μA
Operate Time	2 ms (Max.)
Release Time	1 ms (Max.)
Electrical Endurance	No Arcing, No Bounce, and No Switching Noise
Power on Value	Yes, Programmable
Safe Value	Yes, Programmable

COM Ports
Baud Rate	115200 bps
Data Format	N, 8, 1
Protocol	DCON

Power
Consumption	0.5 W Max.

Mechanical
Dimensions (mm)	31 x 116 x 88 (W x L x H)

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +75 °C
Humidity	5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-87069-G CR

8-ch PhotoMOS Relay Module (0.13A Rating Current) (Gray Cover) (RoHS)
