Miễn phí vận chuyển với đơn hàng từ 10.000.000đI-87088W-G CR: Module 8 kênh đầu ra xung PMW + 8 kênh đầu vào bộ đếm tốc độ cao HSC
Features
• 8-channel PWM Output and 8-channel Counter Input
• Burst Mode and Continuous Mode for PWM Output
• Software and Hardware Trigger Mode for PWM Output
• Individual and Synchronous PWM Output
• High-speed Counters
• 4 kV ESD and EFT Protection
• Dual Watchdog
• Wide Operating Temperature Range: -25 to +75°C
Introduction

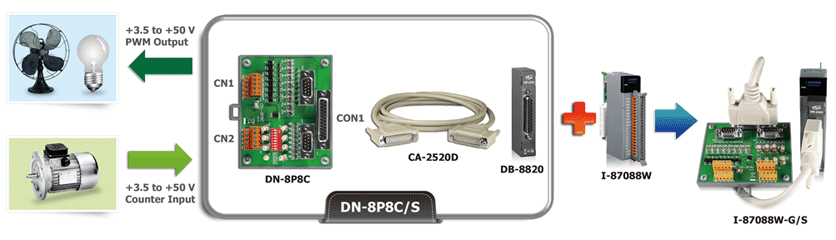

The I-87088W provides 8-channel PWM (Pulse Width Modulation) Output and 8-channel Counter Input, and can be used to develop powerful and costeffective analog control systems. PWM is a powerful technique for controlling analog circuits that uses the Digital Output to generate a waveform with a variable duty cycle and frequency which can then be used to control an analog circuit in applications such as controlling the position or speed of motors, the brightness of lamps, or the speed of fans, etc. Either burst mode or continuous mode can be used for the PWM output depending on the application. In addition, all Digital Input channels can be used as high-speed counters with a speed of up to 1 MHz. The I-87088W/S allows the load voltage to be increased from +3.5 to +50 V for the 8-channels PWM (Pulse Width Modulation) output and the 8-channels high-speed counter.
Application
• Controlling Motor
• Position/Speed
• Dimming Lamp Brightness
• Controlling Fan Speed
Specification
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 8 x I/O |
| Digital Input/Counter | |
|---|---|
| Channels | 8 |
| Sink/Source (NPN/PNP) | Sink, Source |
| Bits | 32-bit |
| Mode | Up |
| Contact | Wet Contact |
| ON Voltage Level | +1 VDC Max. |
| OFF Voltage Level | +3.5 ~ +5 VDC |
| Frequency | 1 MHz |
| Digital Output | |
|---|---|
| Channels | 8 |
| Type | PWM, TTL |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +3.5 ~ +5 VDC |
| Max. Load Current | Sink: +5 VDC @ 10 mA/Channel Source: +5 VDC @ 1 mA/Channel |
| PWM | |
|---|---|
| Frequency | 1 Hz ~ 500 KHz |
| Duty Cycle | 0.1 to 99.9% |
| Mode | Burst, Continuous |
| Burst Count | 1 to 65535 |
| Trigger Start | Hardware or Software |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | DCON |
| Power | |
|---|---|
| Consumption | 1.7 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Download
Ordering information
| I-87088W-G CR | 8-ch PWM Output and 8-ch High-speed Counter Input Module (RoHS) |
